Product Details

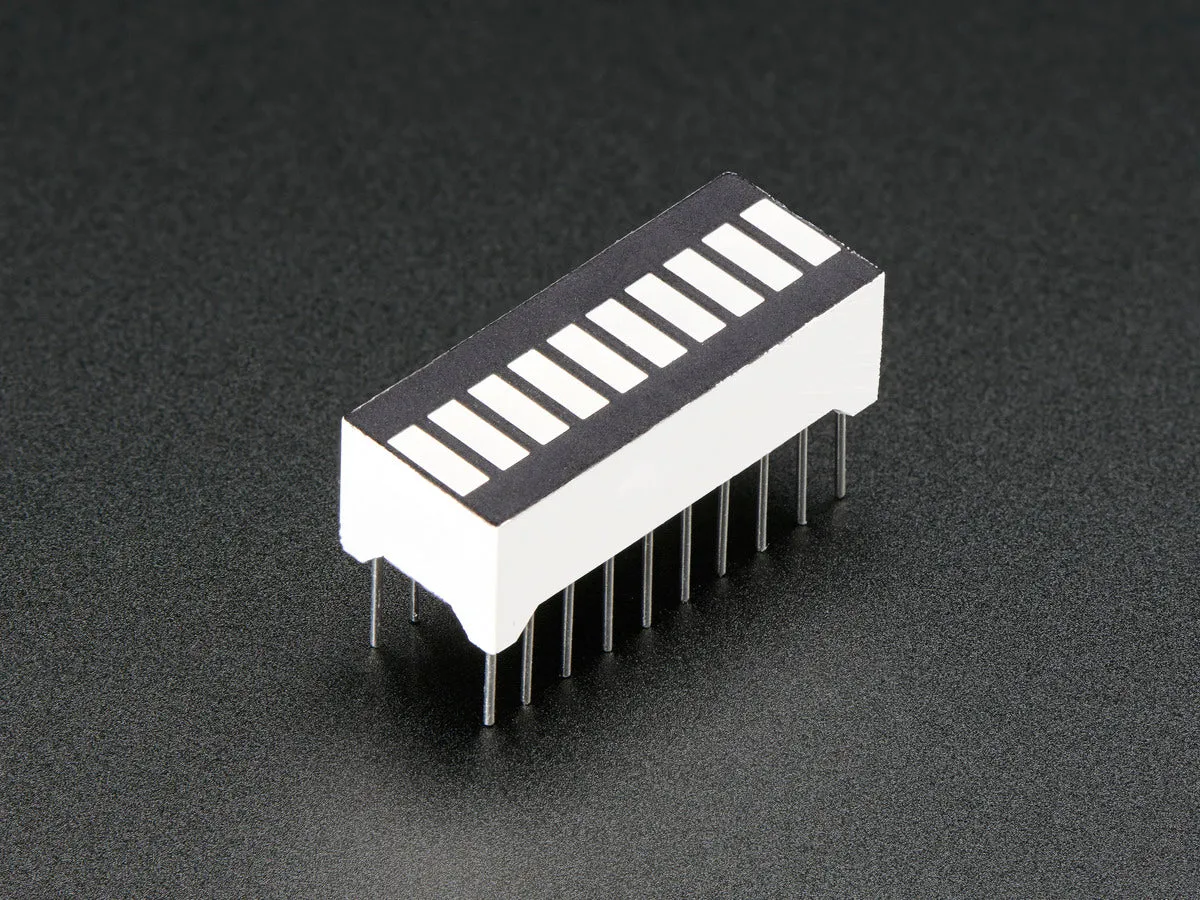

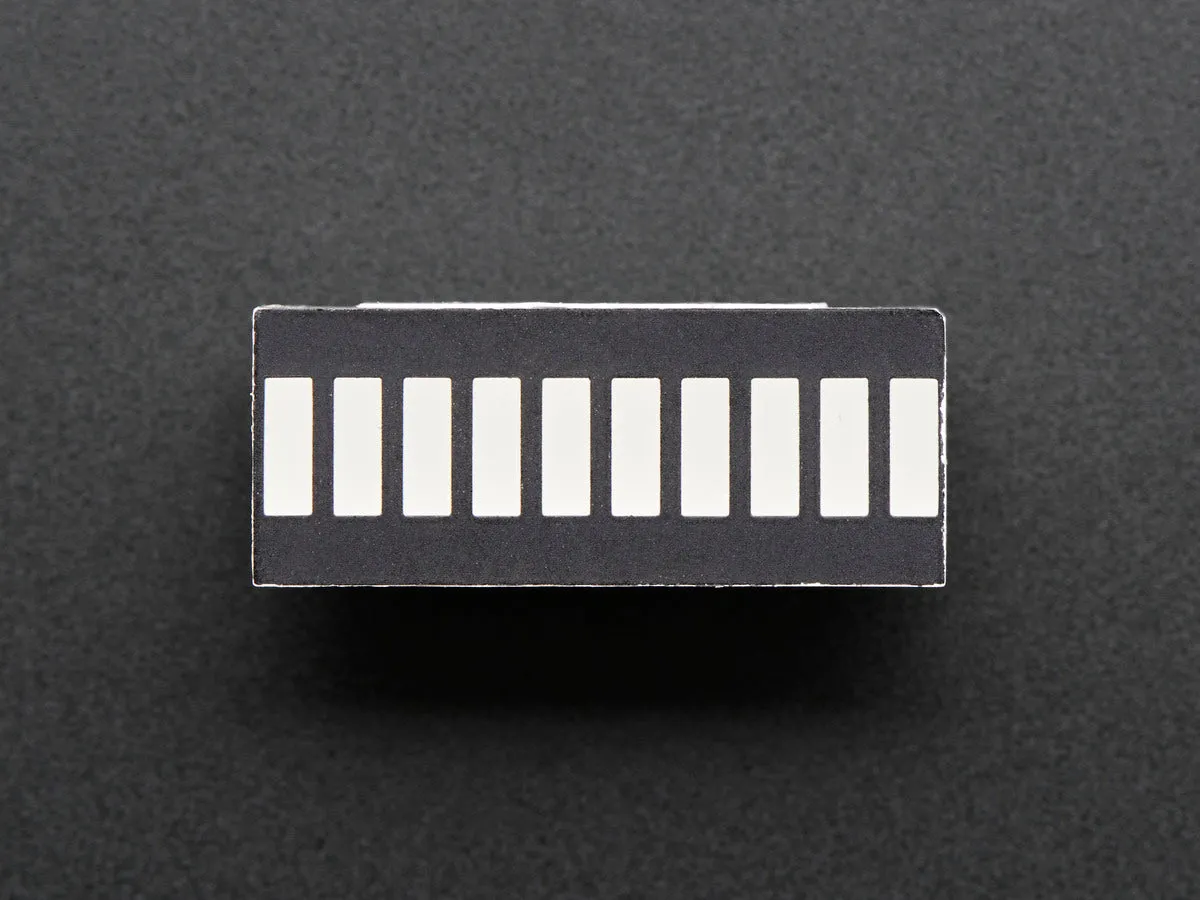

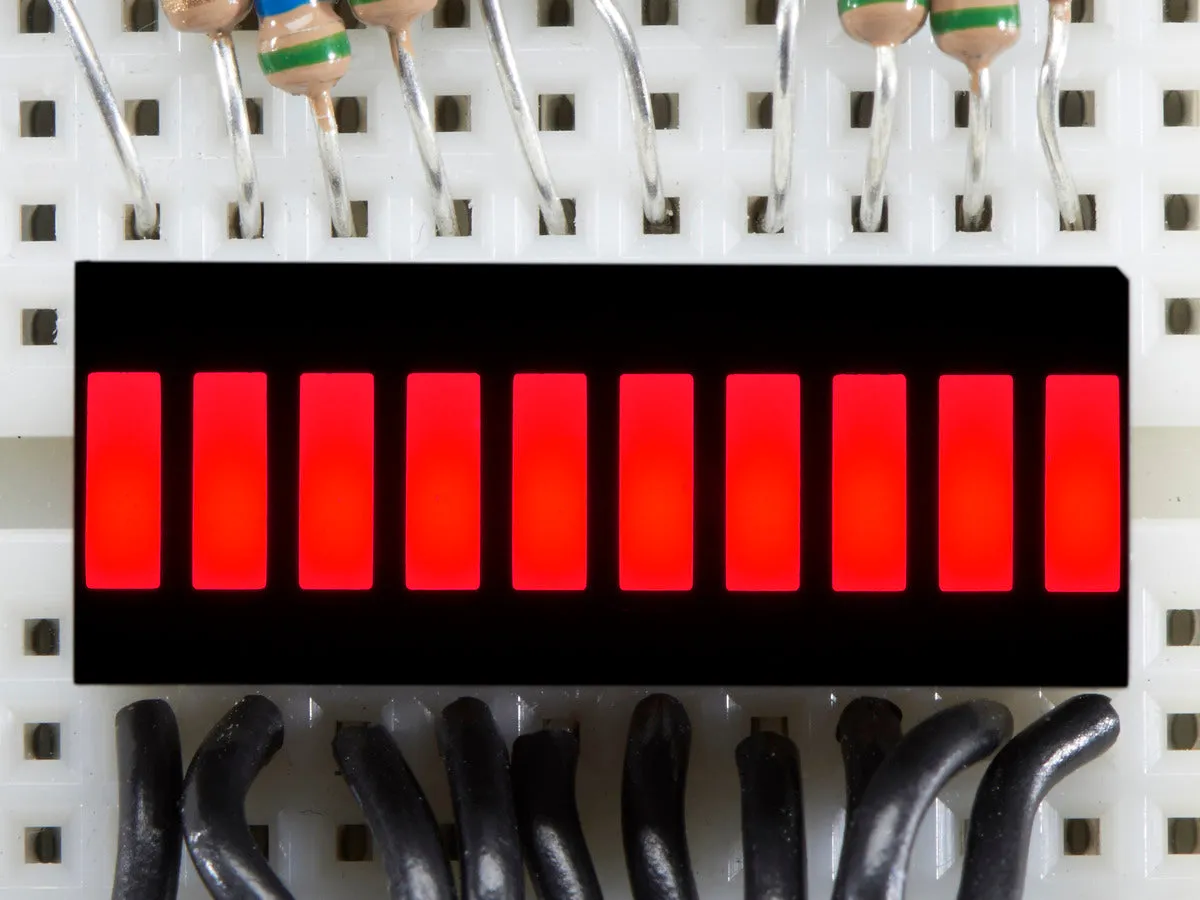

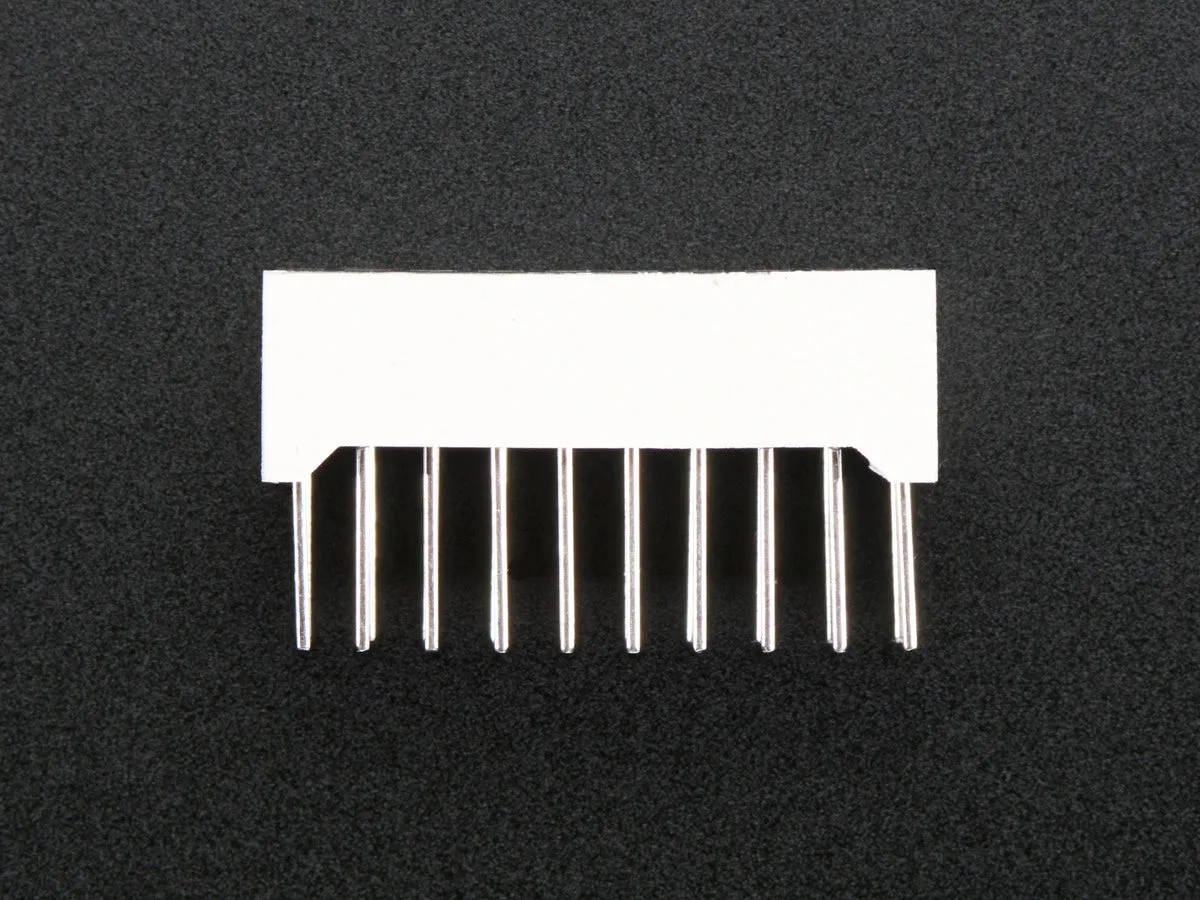

Make a small linear display with a glowing red color using this elegant LED bargraph. Only 1" long, it is quite visible but not so large it wont plug into a breadboard! 10 LEDs are contained in the plastic body. This display is bright, beautiful and funky with nice diffused rectangular lenses for a striking look. There are 20 pins, 10 on each side, with 0.1" spacing so you can easily plug it into a breadboard with plenty of space for wiring left over.

There is but that one is for non-multiplexed displays. You should also check out the for ideas on how to drive a multiplexed bargraph.



Technical Details

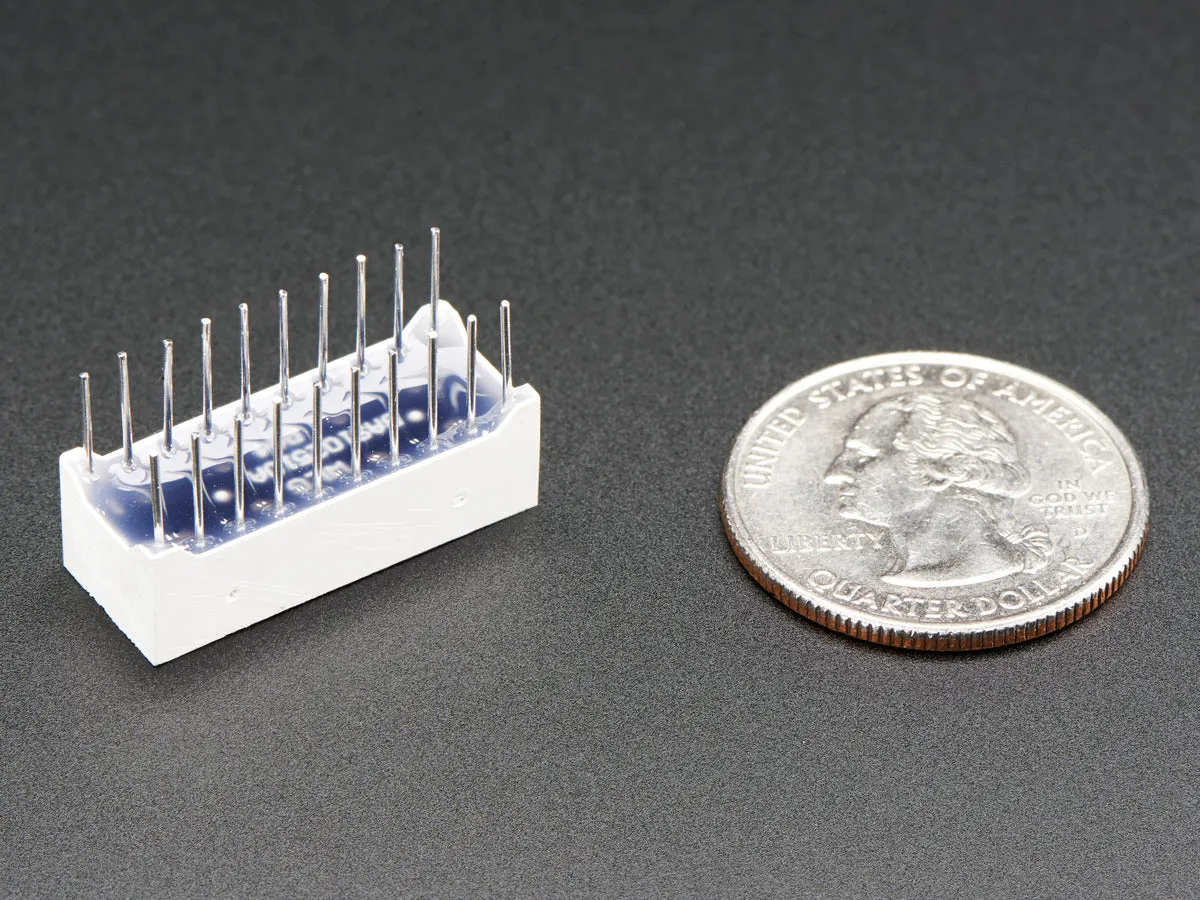

  • Dimensions: 25.5mm x 10mm x 6.5mm / 1" x 0.4" x 0.25"
  • Height with Pins: 14.5mm / 0.6"
  • Weight: 2.3g


    10 Segment Light Bar Graph LED Display - Red
    • Localstock
    • Overseasstock

    $ 54.42

    $ 41.86
