SPECIFICATIONS

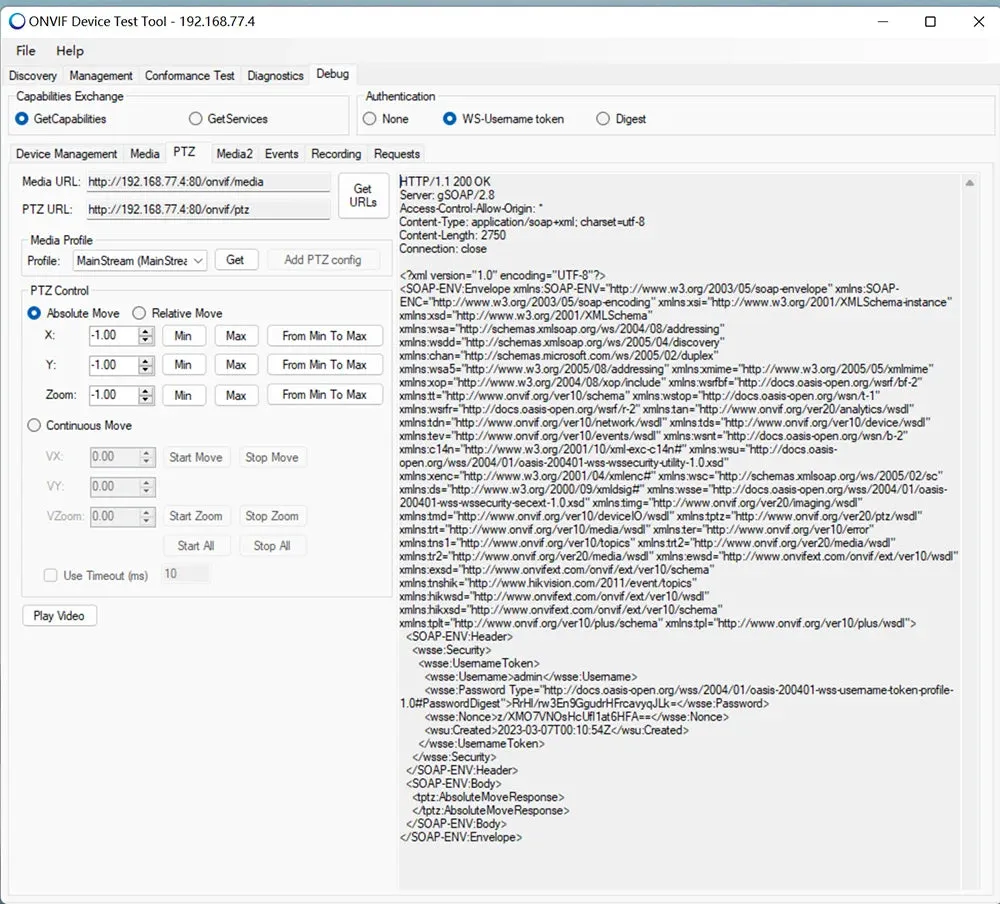

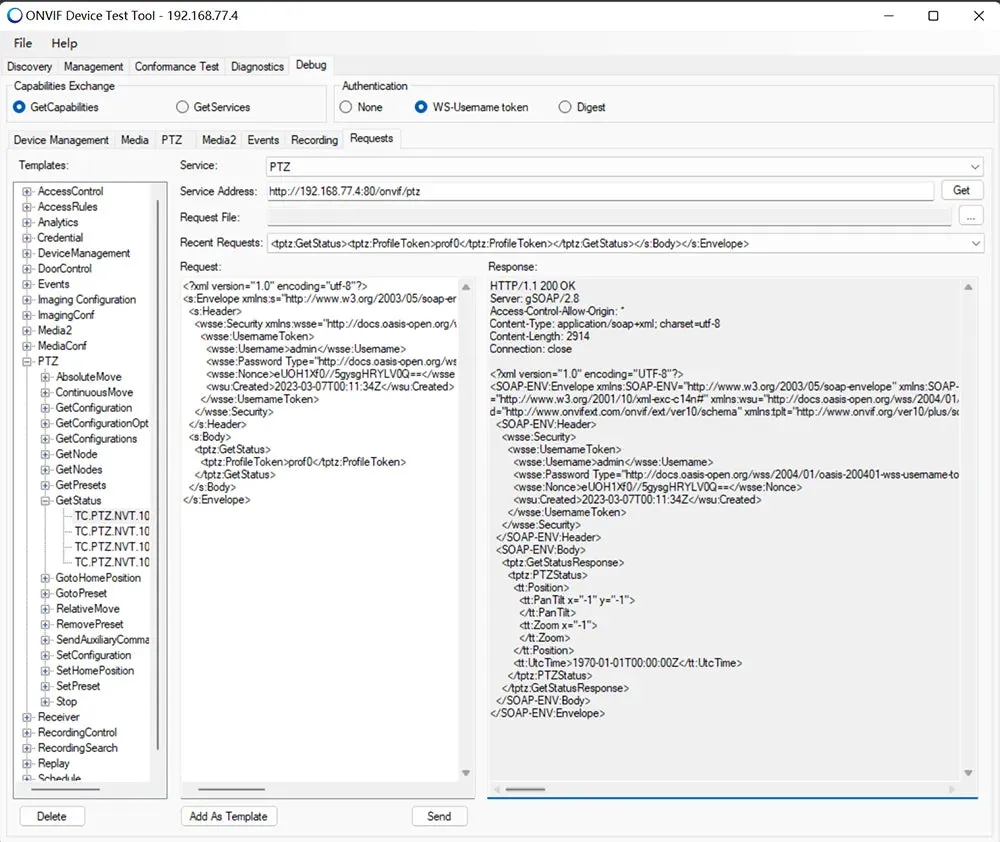

Demonstration of ONVIF Absolute MOVE Protocol Control

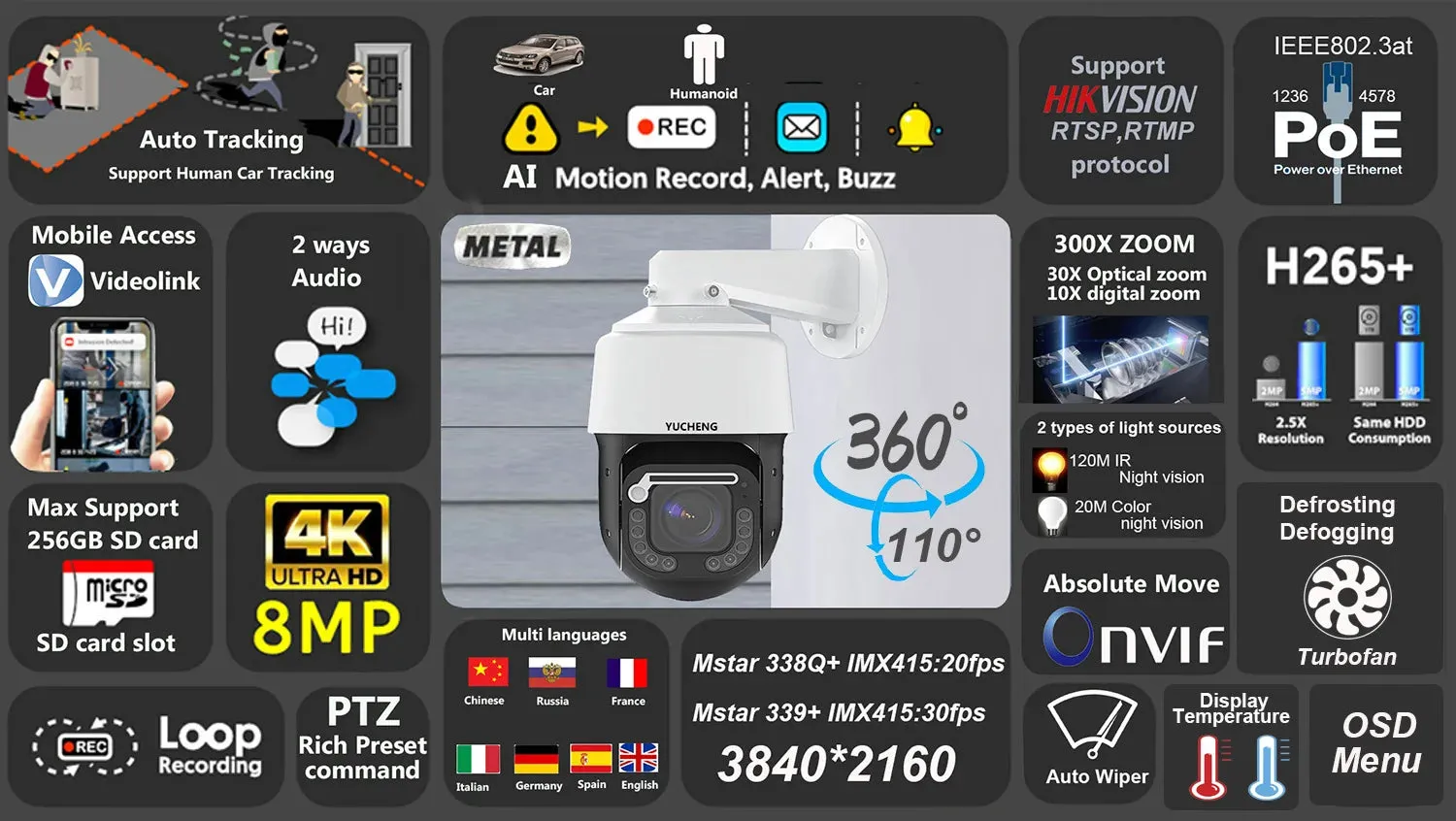

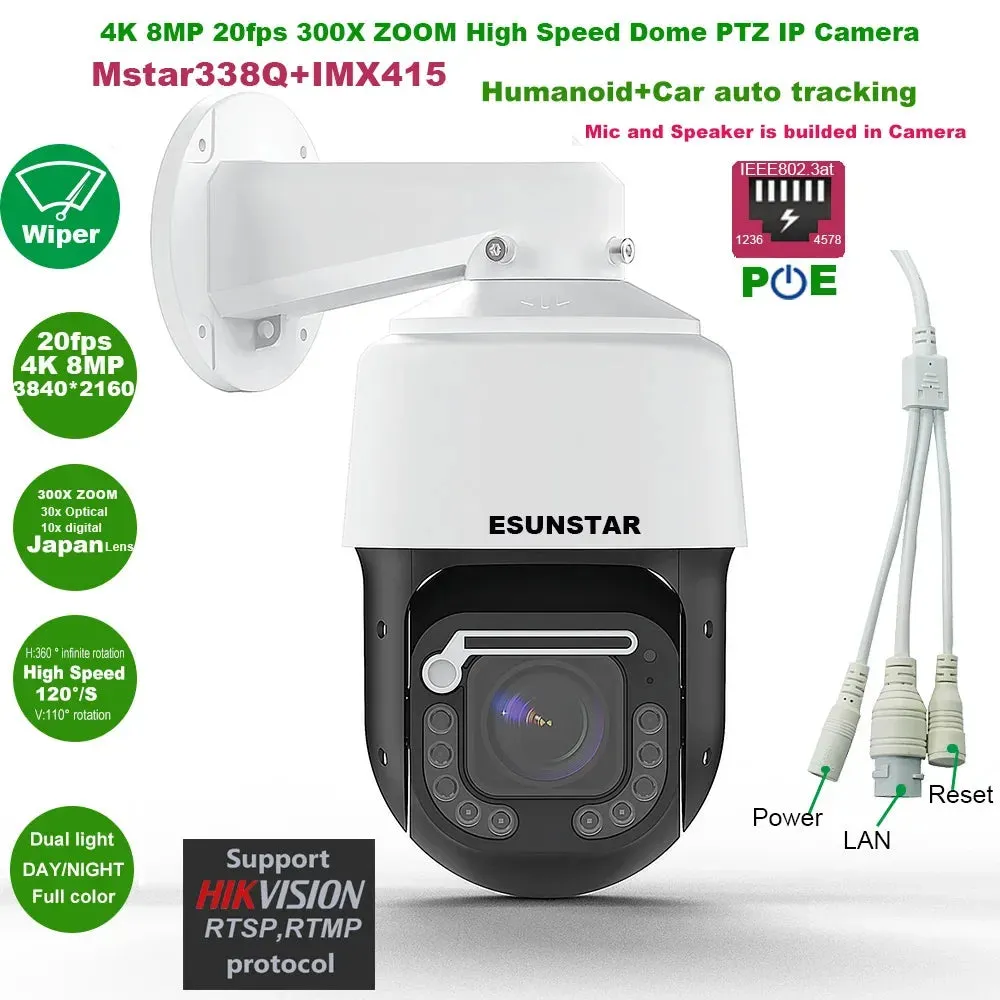

This is a brand new multi-functional intelligent AI High Speed Dome PTZ IP CAMERA released by ESUNSTAR. It is equipped with a 30x optical zoom high-definition lens and supports 10x digital zoom, which can achieve a true 300x zoom camera. The camera supports 360° horizontal and unlimited rotation, which can achieve 7*24 hours of uninterrupted tracking and cruising. Equipped with 10 high-power LED lights, it can achieve infrared night vision distance of 150 meters at night, and achieve full-color night vision of 50 meters. The rich AI intelligent programming can meet the monitoring in most application scenarios, and truly realize multi-mode, multi-angle and multi-scenario video monitoring. All functions can be customized. This camera supports multiple connection protocols and is perfectly compatible with your NVR and third-party management software platforms. Support ONVIF, Hikvision protocol, RTSP protocol, RTMP protocol, etc. And support IEEE802.3AT (1236/4578) POE connection.

Here are 9 different attribute options available

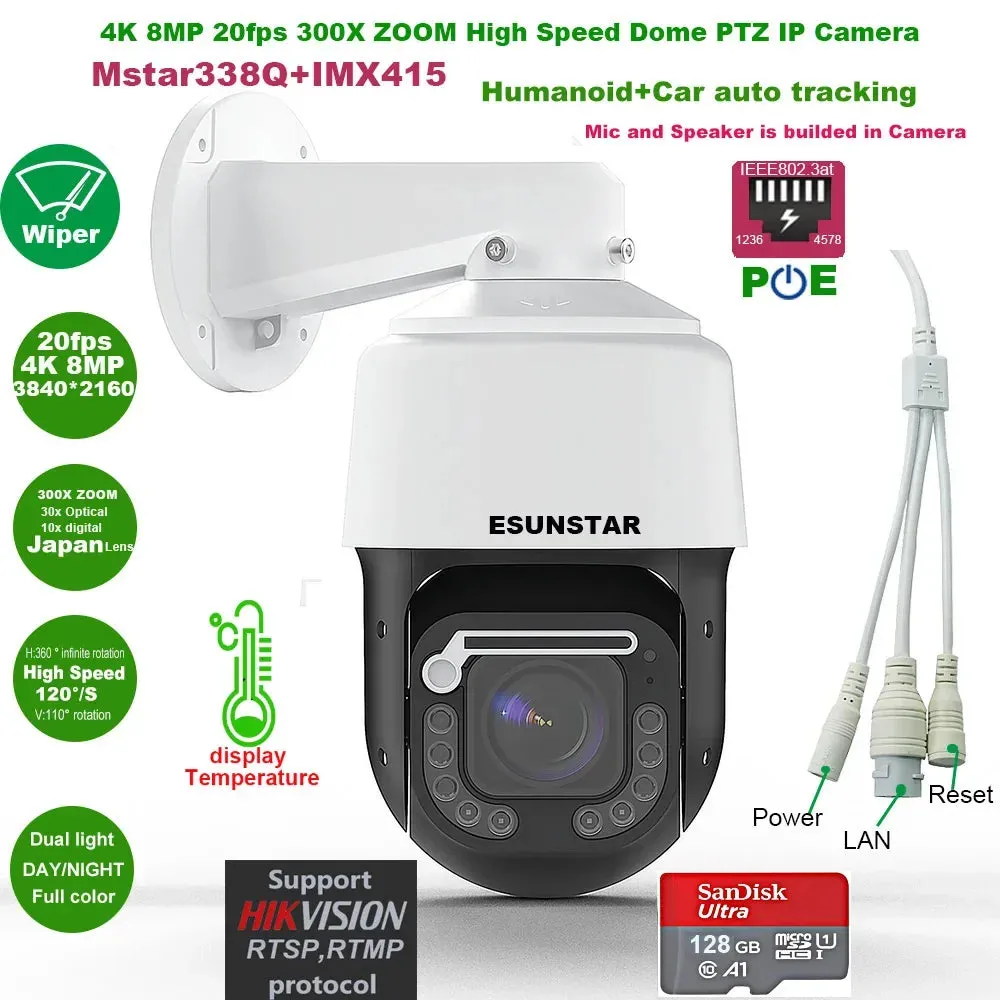

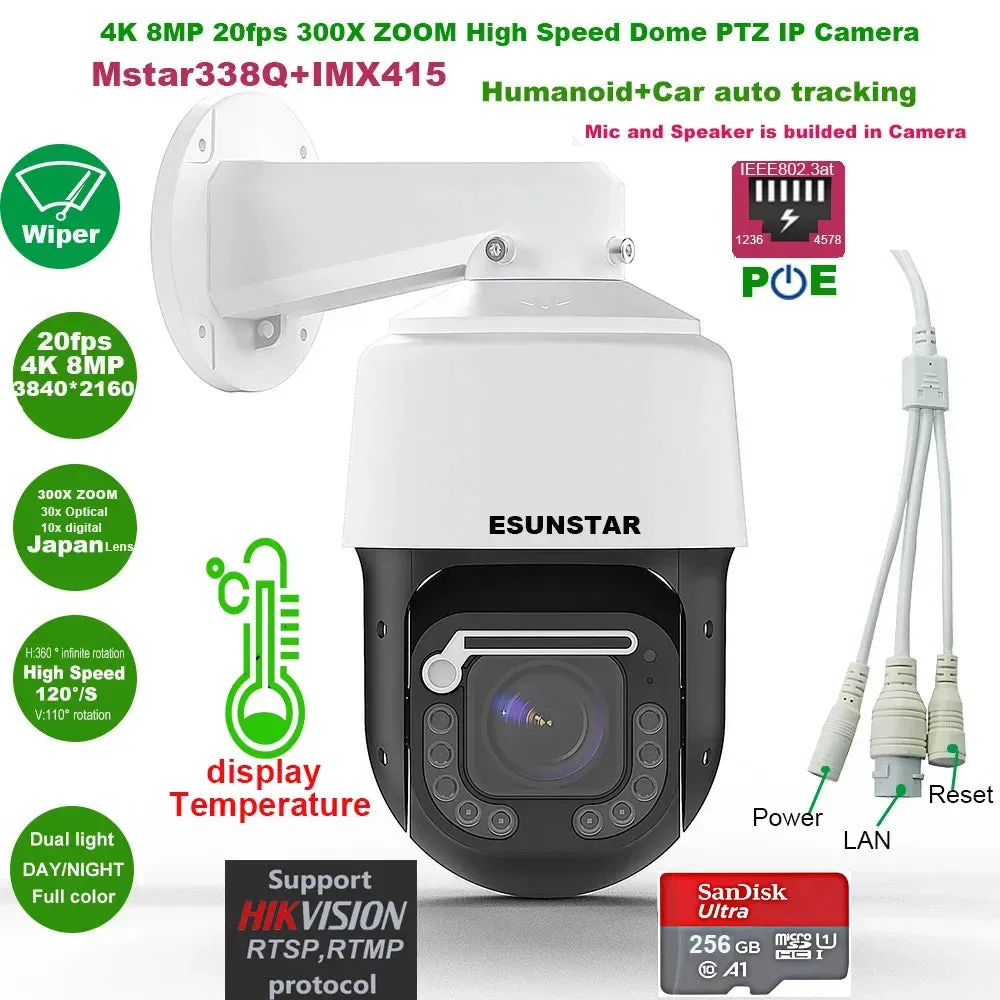

1:8MP 20fps No SD: Mstar338Q IMX415 20fps not contain SD card Temperature display not supported

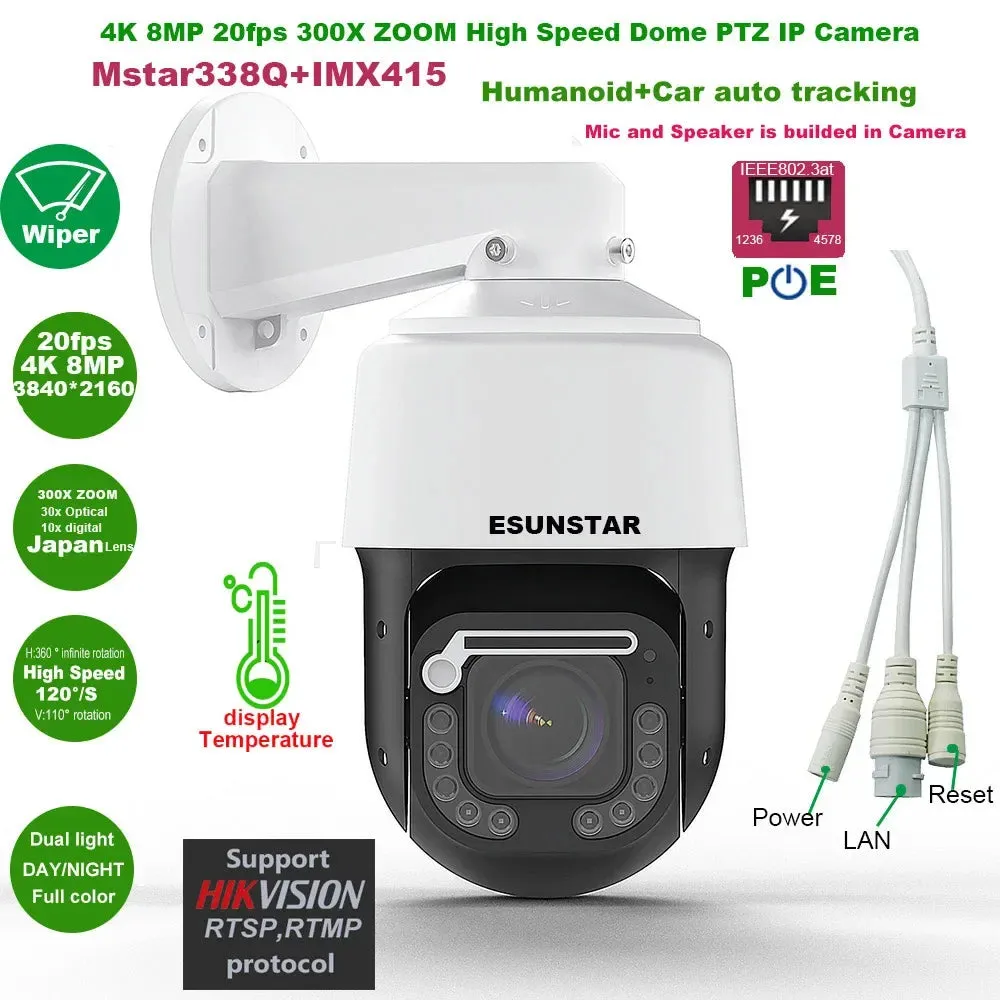

2:8MP 20fps No SD-°C: Mstar338Q IMX415 20fps not contain SD card Support temperature display

3:8MP 20fps 128GB SD: Mstar338Q IMX415 20fps contain 128GB SD card Temperature display not supported

4:8MP 20fps 128GB SD-°C: Mstar338Q IMX415 20fps contain 128 SD card Support temperature display

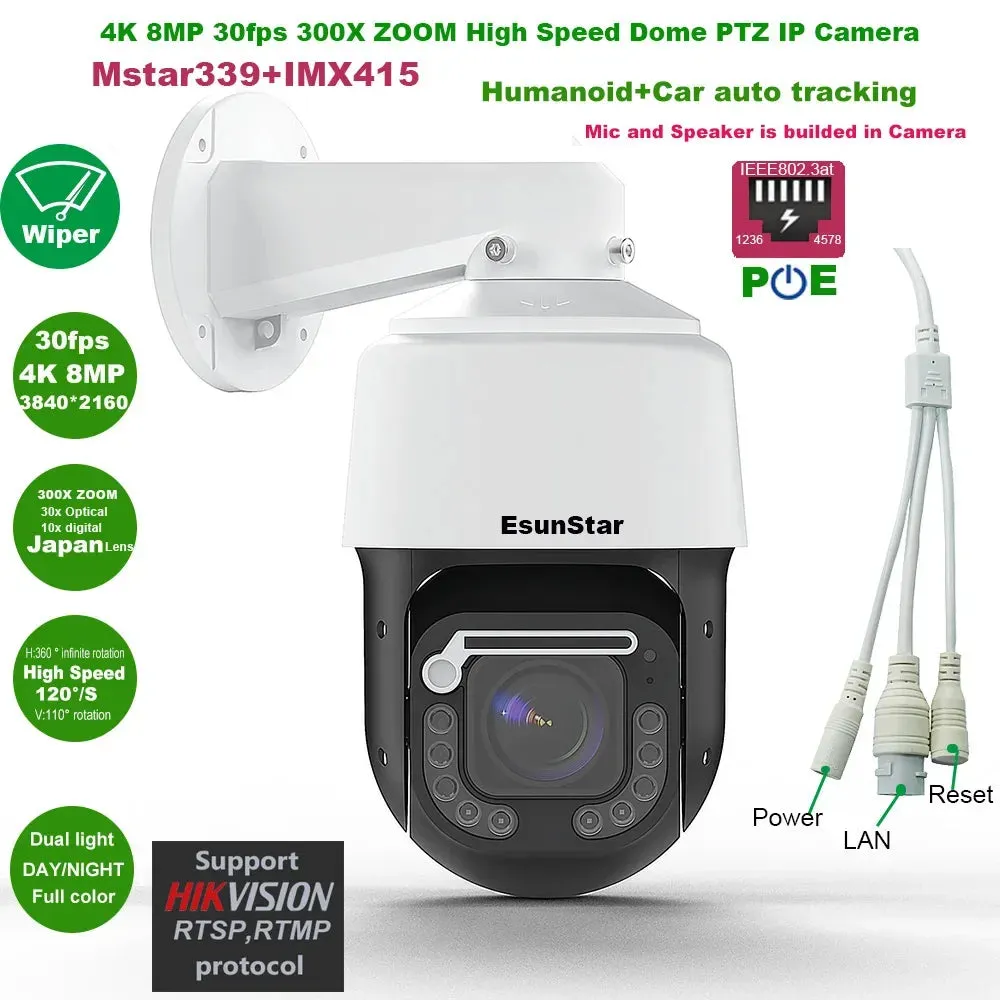

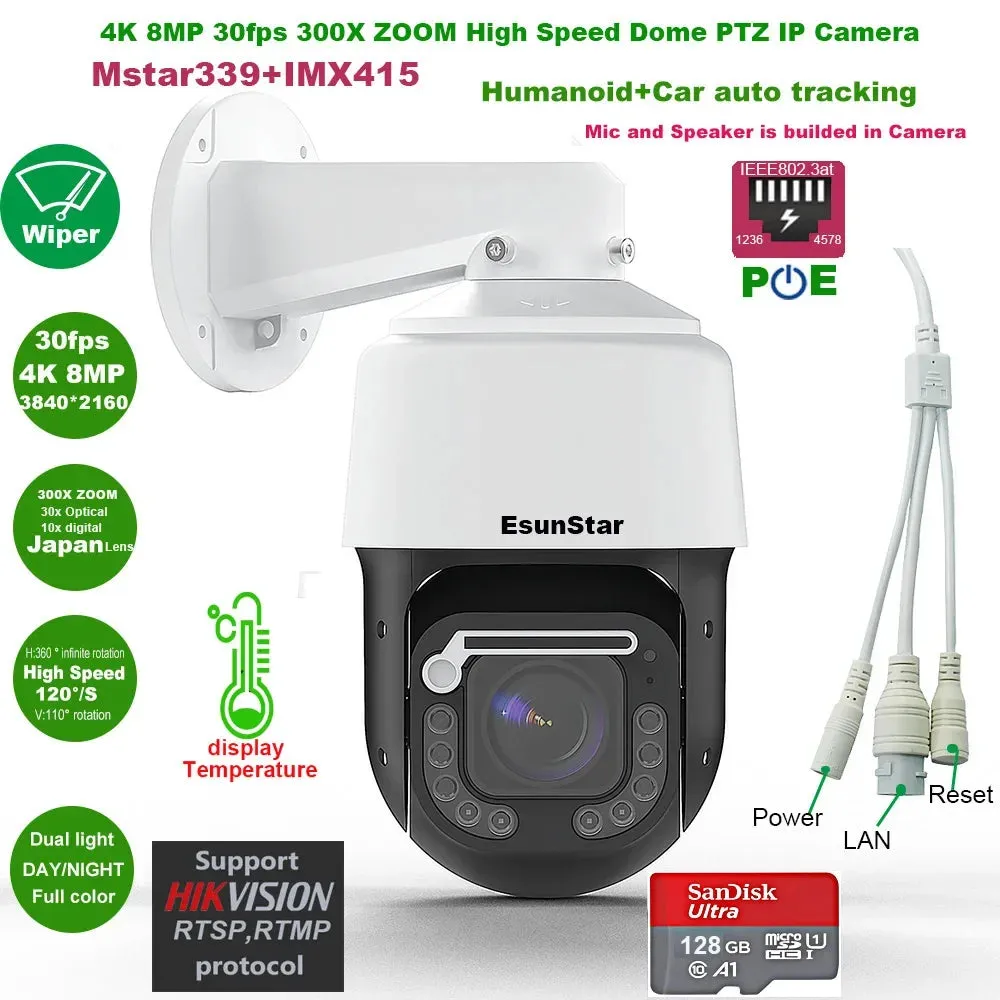

5:8MP 30fps No SD: Mstar339 IMX415 30fps not contain SD card Temperature display not supported

6:8MP 30fps No SD-°C: Mstar339 IMX415 30fps not contain SD card Support temperature display

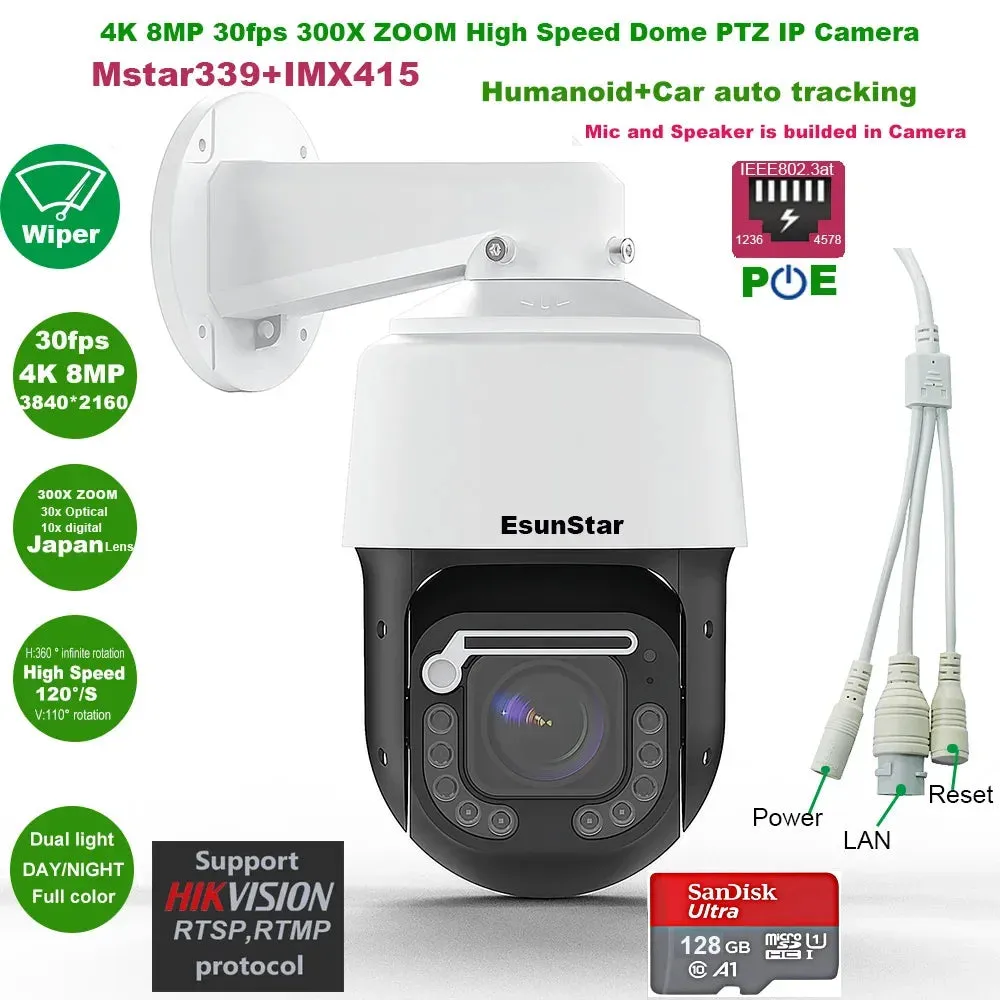

7:8MP 30fps 128GB SD: Mstar339 IMX415 30fps contain128GB SD card Temperature display not supported

8:8MP 30fps 128GB SD-°C: Mstar339 IMX415 30fps contain128GB SD card Support temperature display

9:8MP 30fps 256GB SD-°C: Mstar339 IMX415 30fps contain128GB SD card Support temperature display

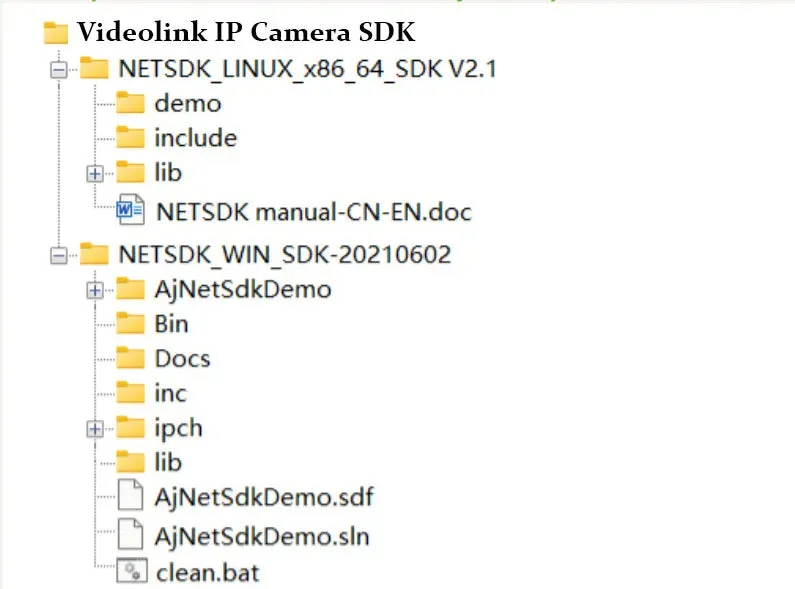

We can provide users with SDK secondary development kits.

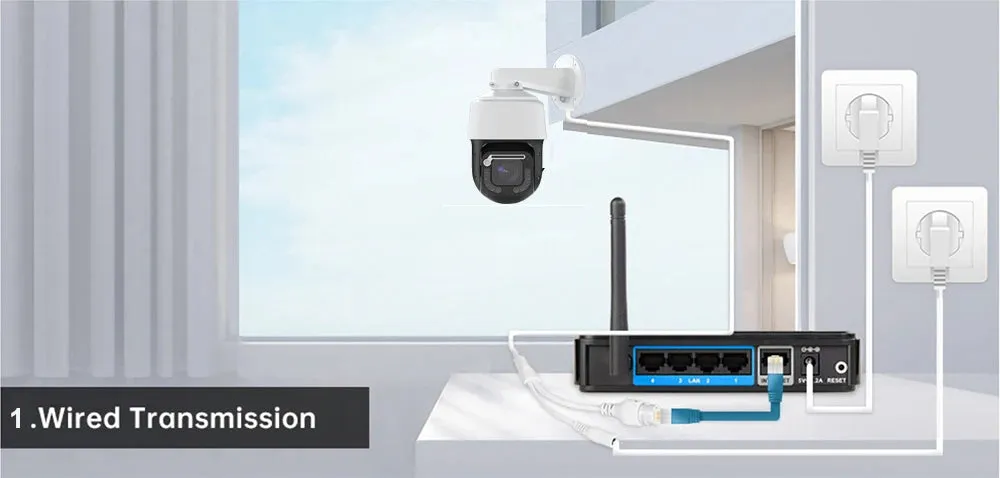

This camera supports wired connection and uses Ethernet cable connection, with a maximum transmission distance of 130 meters.

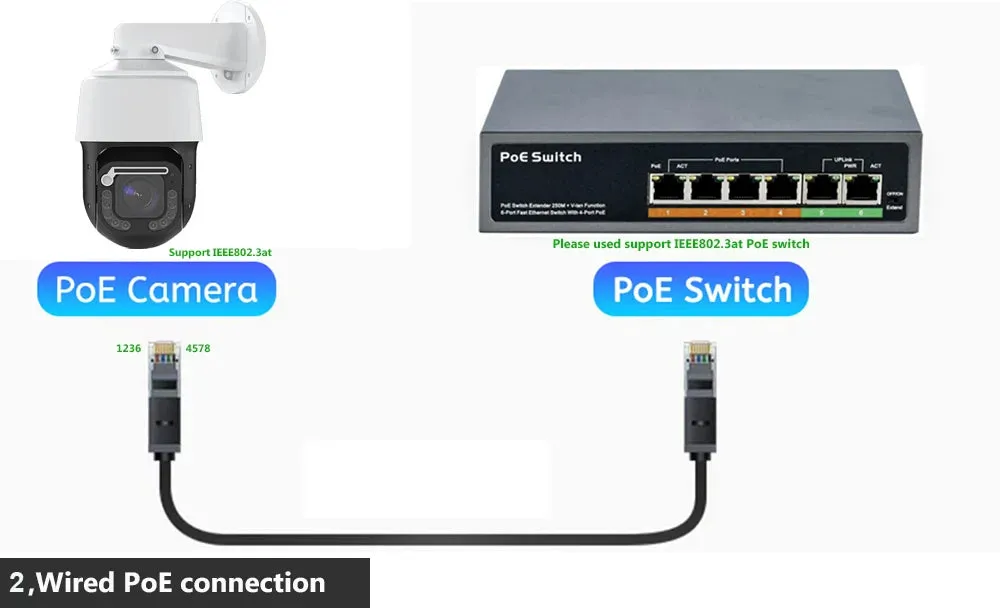

This camera supports POE connection and uses Ethernet cable connection, with a maximum transmission distance of 100 meters. The POE power supply equipment must meet the IEEE802.3AT standard and provide a power supply power of no less than 25W

Plug and play, scan the QR code on the camera to add the camera to the mobile app, app name: videolink

Supports bidirectional voice intercom. Implement real-time calls.

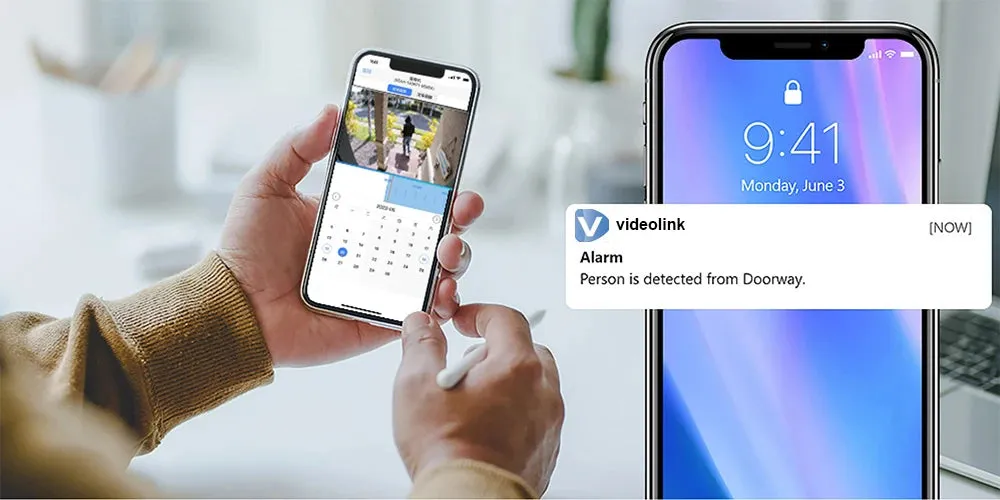

After triggering the alarm, the phone will receive an alarm message.

Product introduction:

1,High sensitivity, high signal-to-noise CMOS image sensorUsing the MSTAR339 processing chip SONY IMX415 CMOSThe highest pixel is up to 8MP, and the highest resolution is up to 8MP (3840*2160)

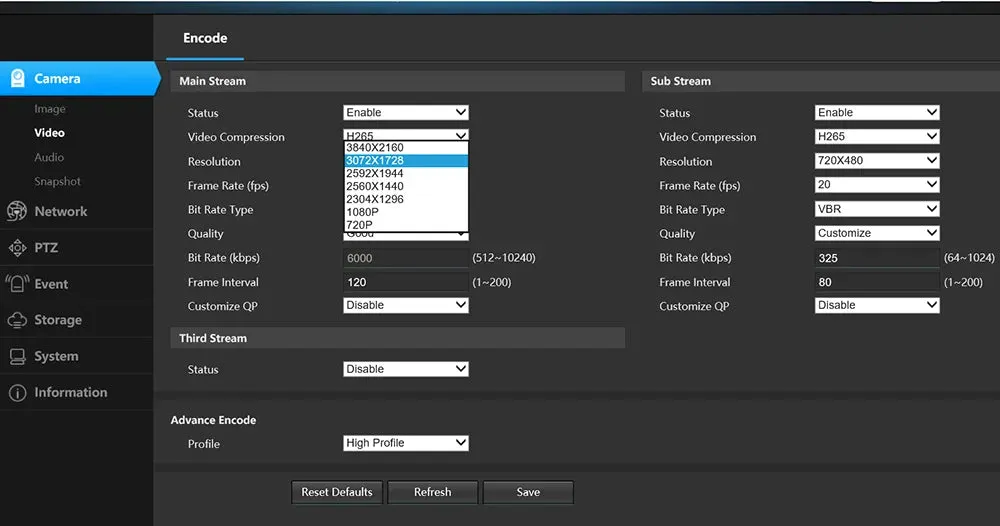

2,Support 8MP 30fps,6MP,5MP,4MP,3MP 30fps,2MP 60fps

3,H.265 compression algorithm, effectively reducing network bandwidth, supporting dual stream,

4,H.265 , H.265 ,H.264 and MJPEG compression algorithm, effectively reducing network bandwidth,

5,supporting 3 streams, supporting mobile phone monitoring

6,Support humanoid recognition to trigger SD card recording, SD card capture, voice alarm, mobile app message push and the picture is captured, and the current video playback can be accurately positioned,

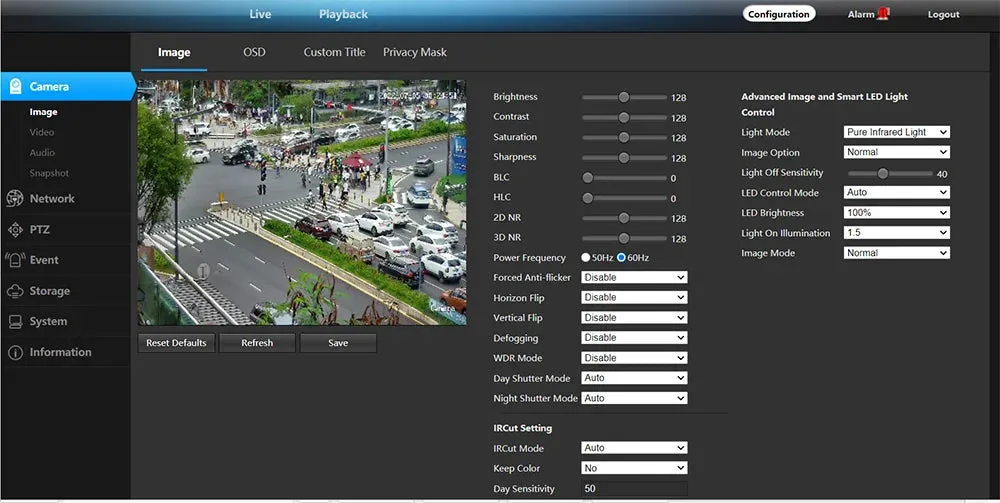

7,support fog function, support WDR, HDR. Support strong light suppression function.

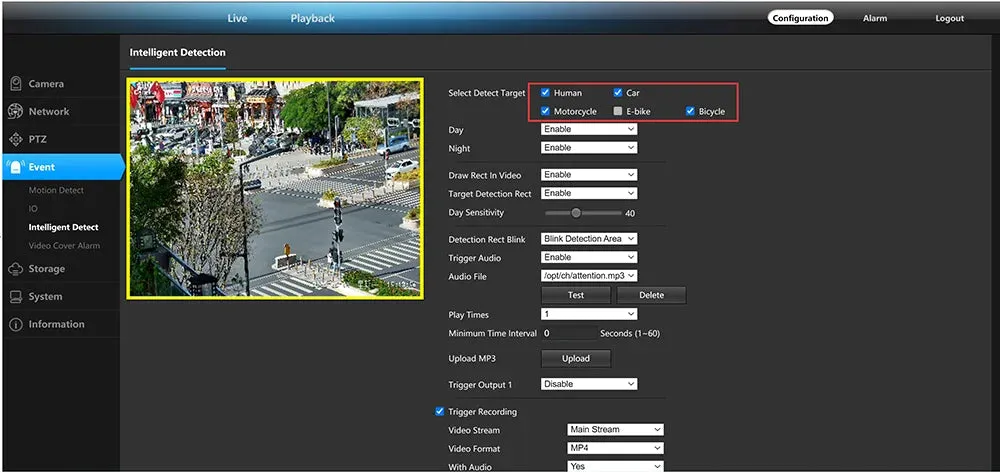

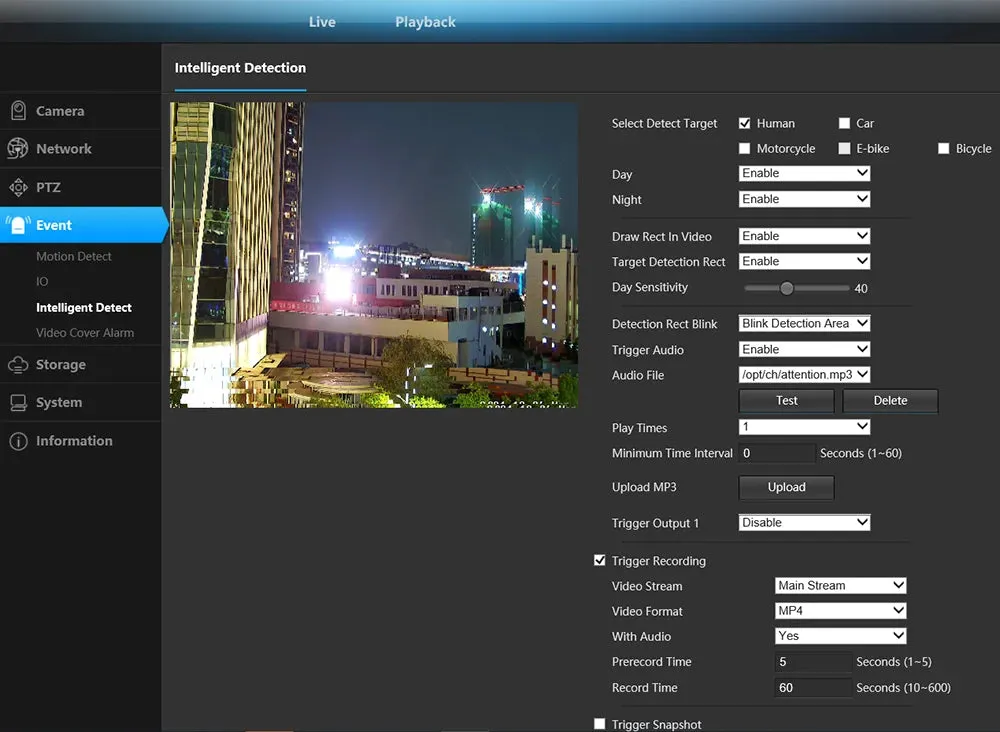

8,Support humanoid recognition and humanoid alarm

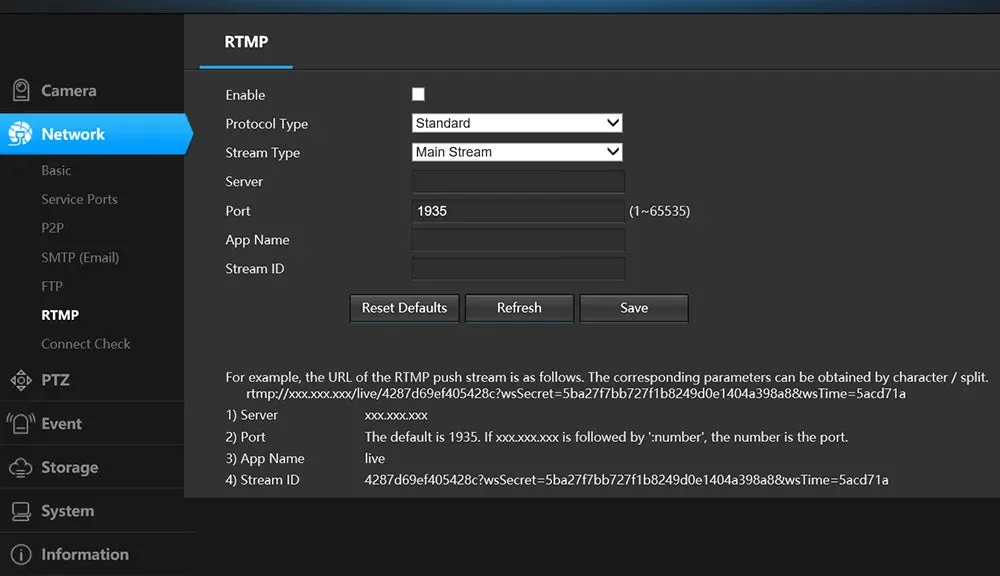

9,Support multiple network protocols: TCP/IP, HTTP, TCP, ICMP, UDP, ARP,IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP, RTMP,etc.

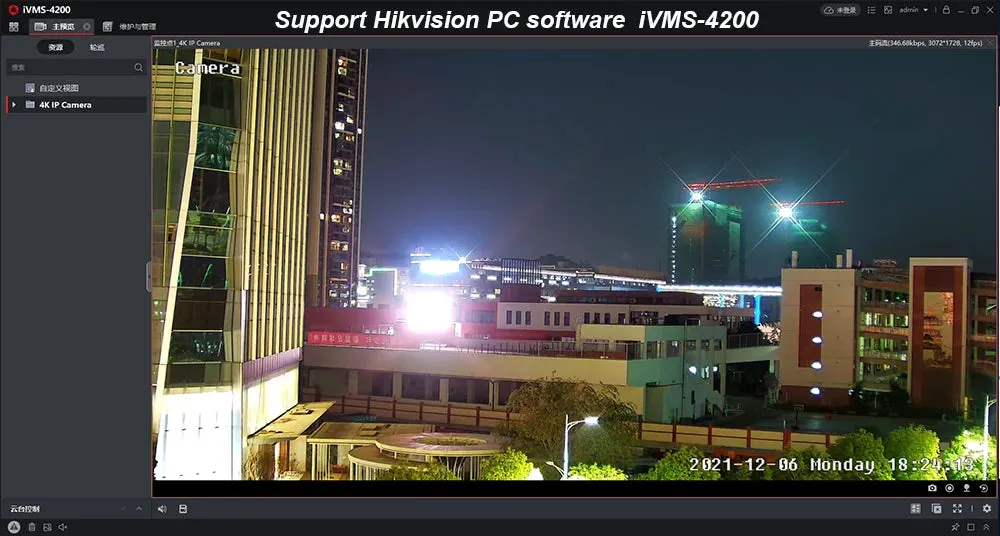

10,Support ONVIF protocol,Hikvision protocol

11,Support alarm sound outputs

12,Support alarm recording time customization, 20 seconds to 10 minutes can be set

13,Support static IP, also support dynamic IP (DHCP)

14,Support custom network card (Mac)address

15,Support P2P plug and play and mobile phone

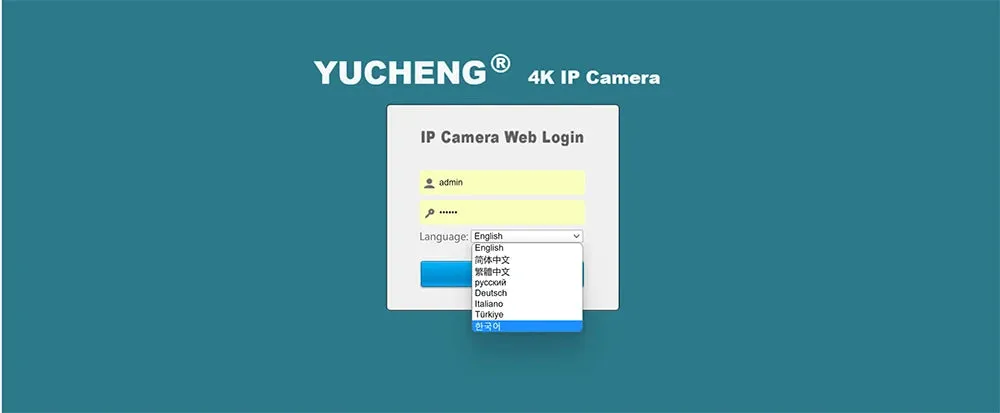

16,Support IE, Google, Firefox browser

17,Supports custom users and authority management

18,Provide motion detection (area, sensitivity can be set) alarm function

19,Support Micro SD card function, support up to 256GB Micro SD card

20,Support PC client to download SD card video

21,Support mobile phone download and playback SD card recording

PTZ Speed dome introduction

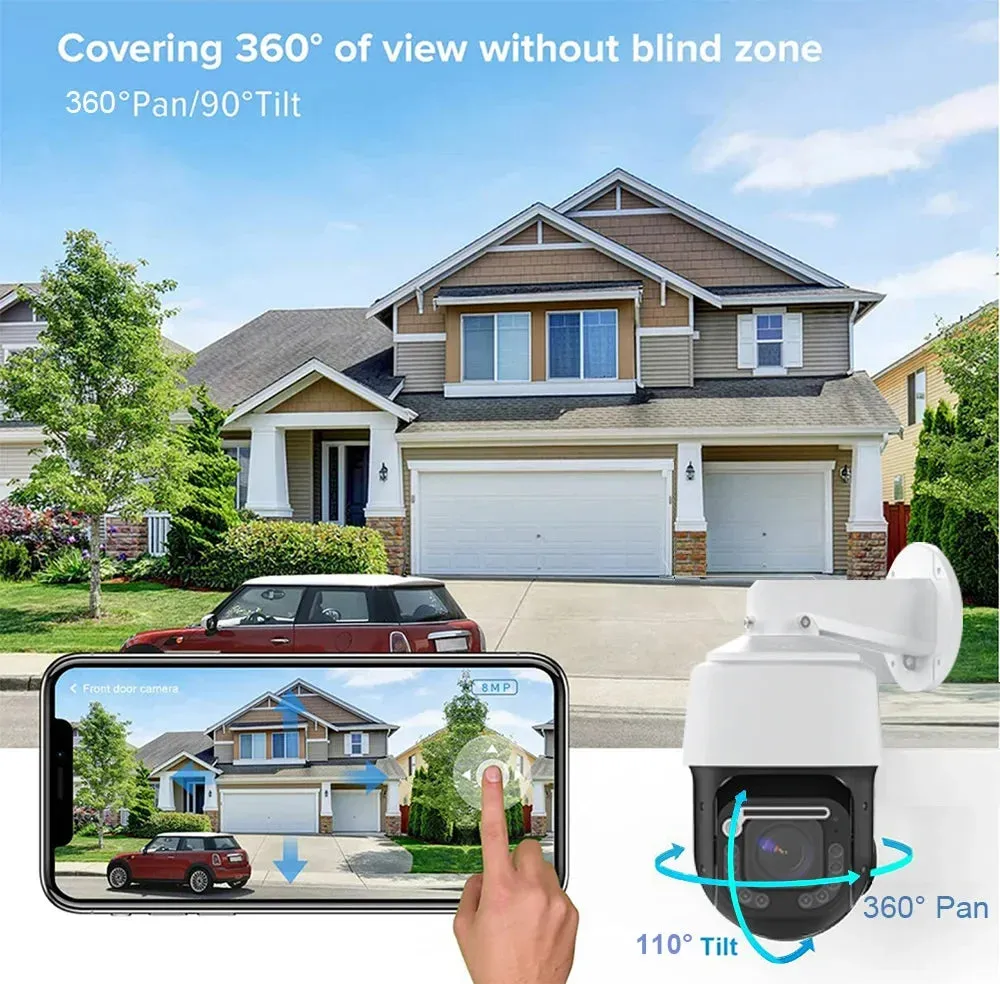

1. Support horizontal 360° infinite rotation and vertical 110° rotation. Rotation speed adjustable from 0.1 to 120°/second

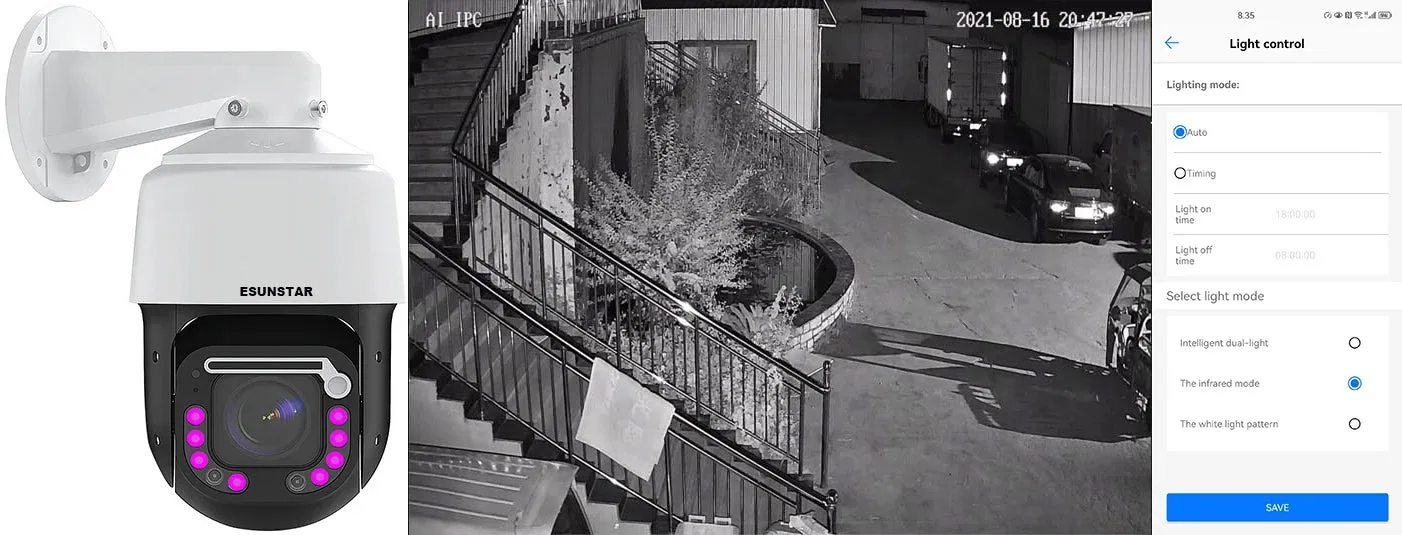

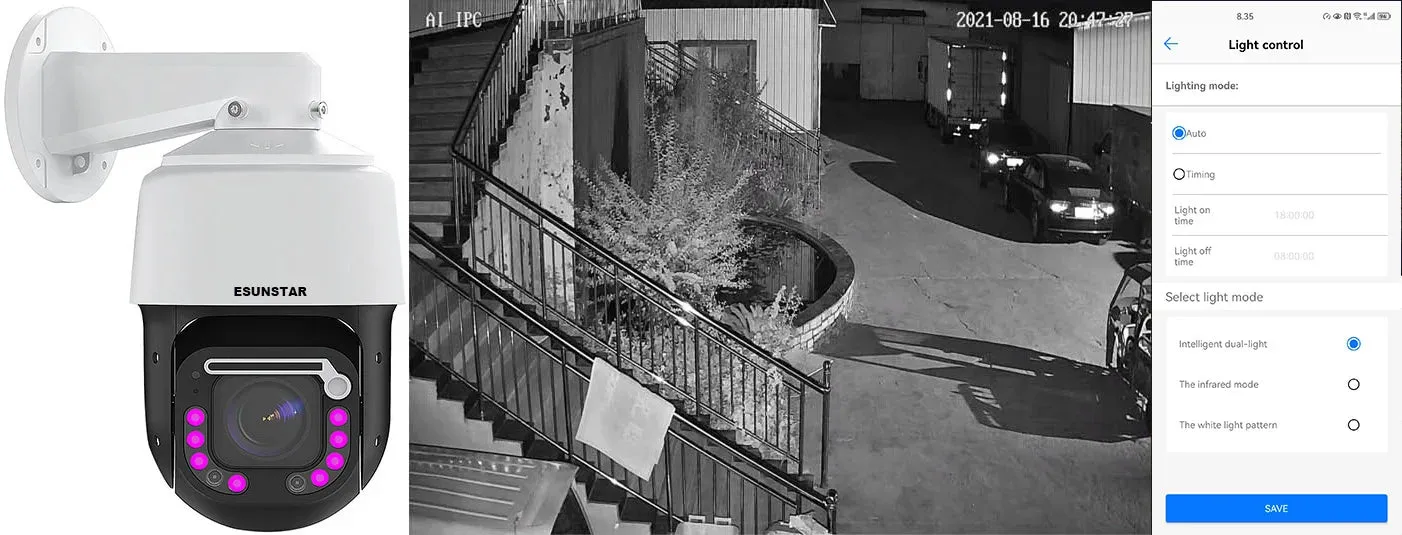

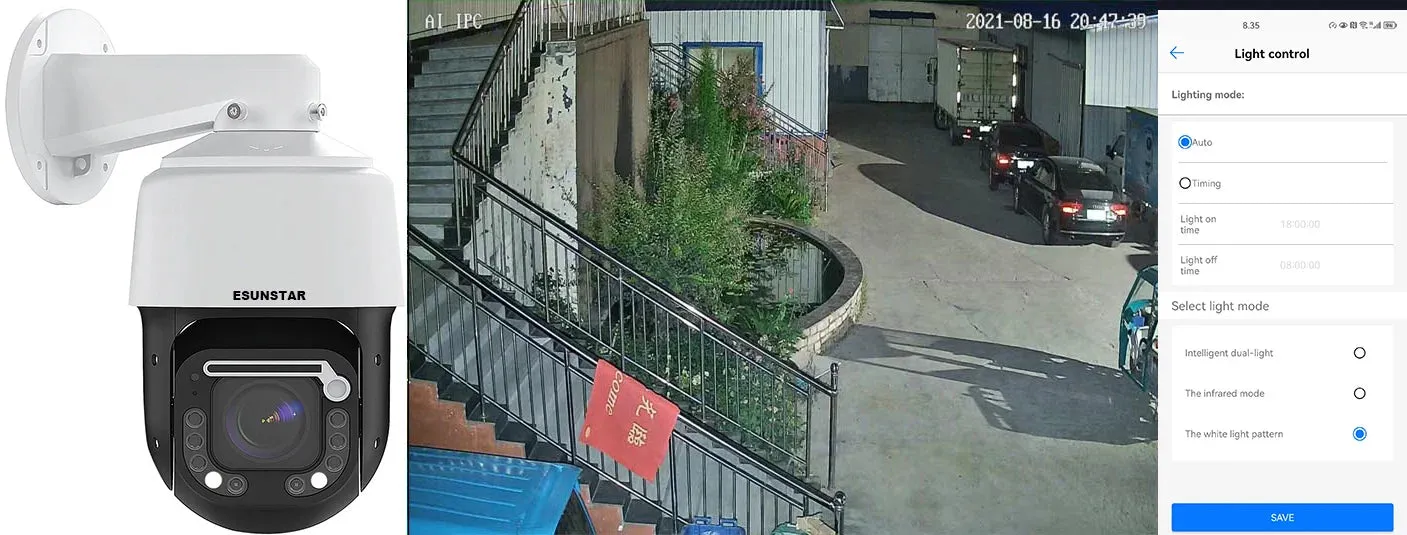

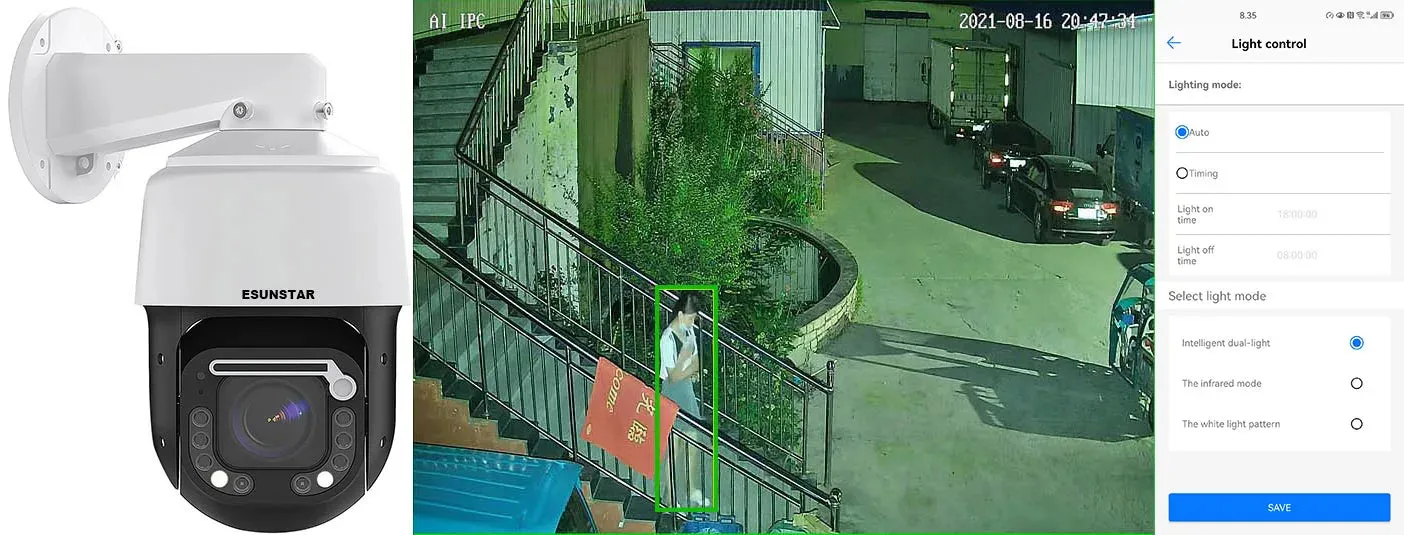

2. Support 3 groups of light control: infrared short-distance light, infrared long-distance light and white light, which can realize full color day and night, full infrared and other modes

3,Support wiper for Remove obstacles from the outside of the glass

4,Support Defog for Remove fog and water vapor from the lens

5,Support OSD menu display

6,Support Outdoor temperature display (real-time monitoring of environmental temperature changes), with optional functions

7,Support ONVIF Absolute move

8. Support humanoid/vehicle tracking;

9. Support fixed-point tracking, cruise tracking, 360-degree horizontal scanning tracking, limit scanning tracking and other tracking modes

10. Support limited time tracking/continuous tracking mode adjustable and support adjustable tracking speed

11. Support 2 groups of cruises, each group of cruises supports a maximum of 64 preset positions. And supports the cruise point stay time and cruise speed adjustable.

12. Supports regular functions such as guard position, 360-degree horizontal scanning, limit scanning, and idle action. And supports adjustable dwell time and rotation speed

13, IP66 waterproof grade.

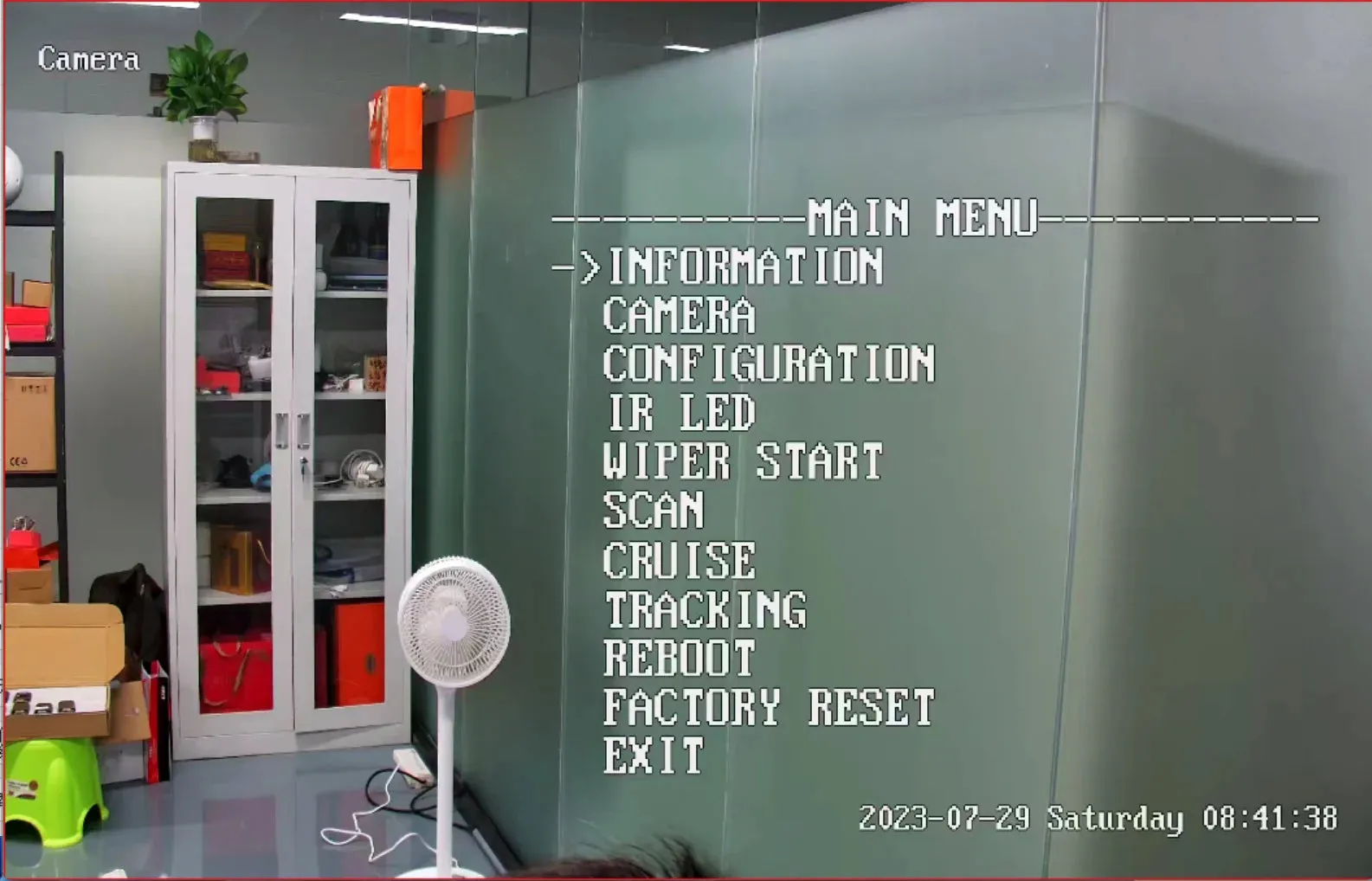

Support OSD Menu

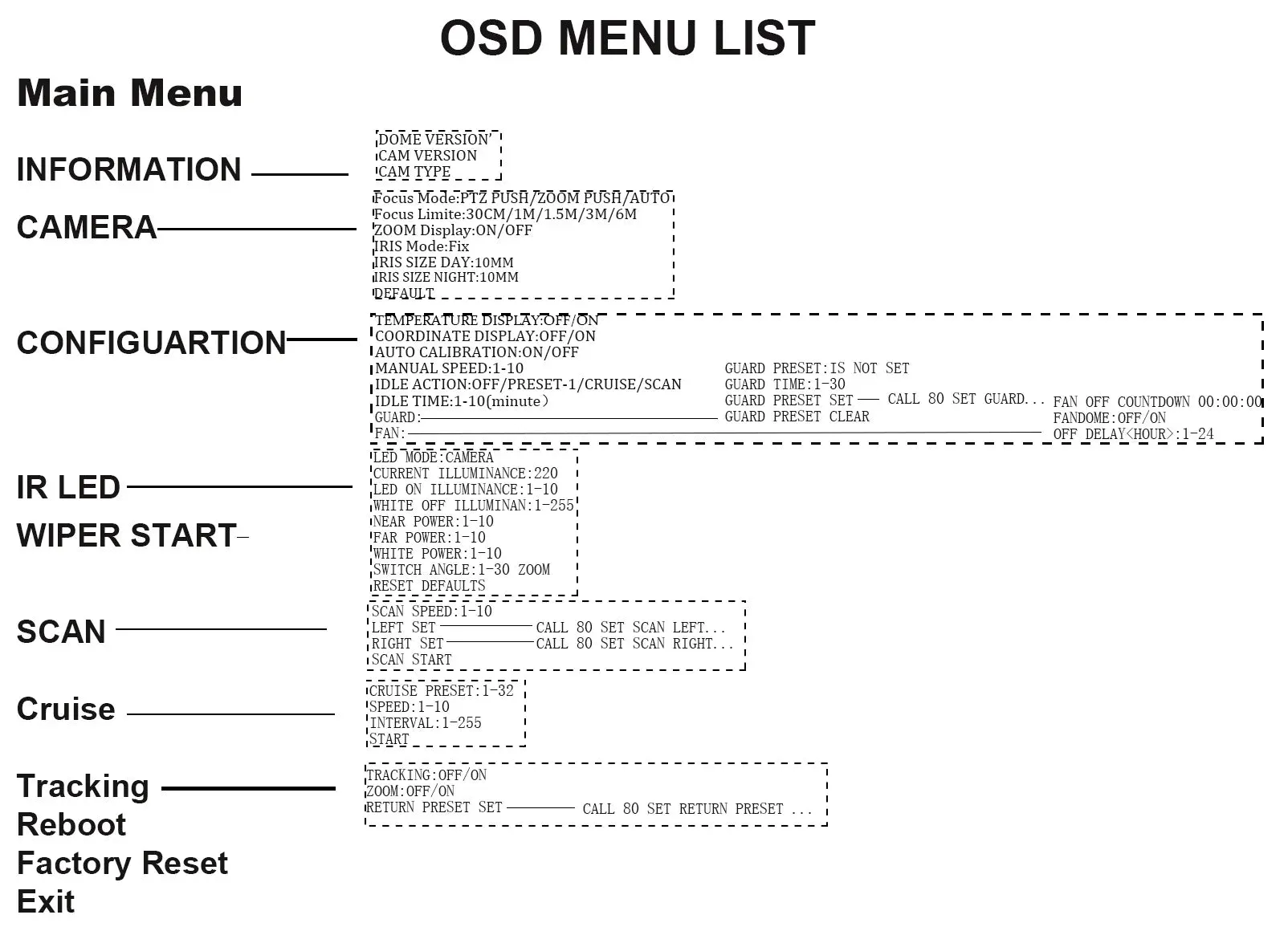

OSD Menu Tree

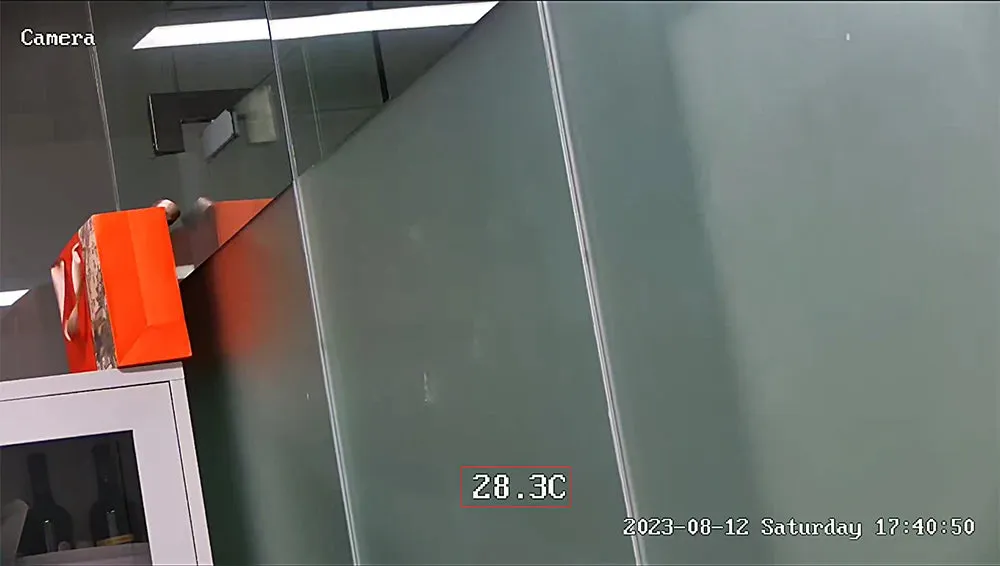

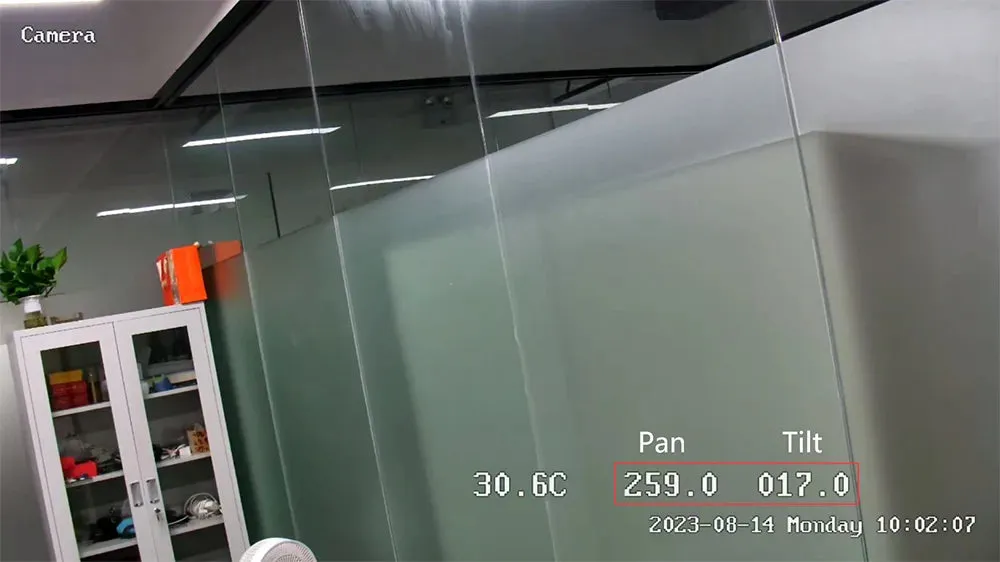

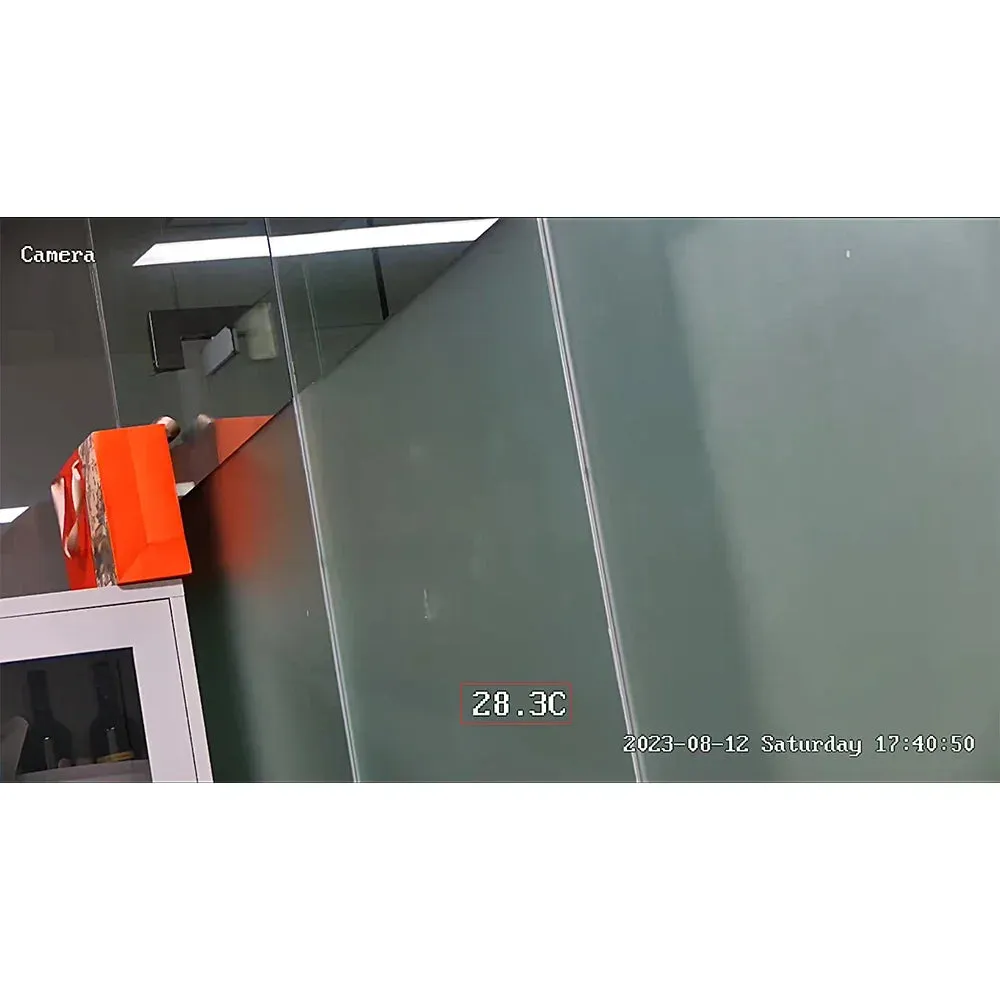

Built in temperature sensor, real-time display of current ambient temperature

Supports Pan/Tiltphysical absolute coordinatesdisplay ON/OFF

Tracking function:

Support for fixed-point tracking:

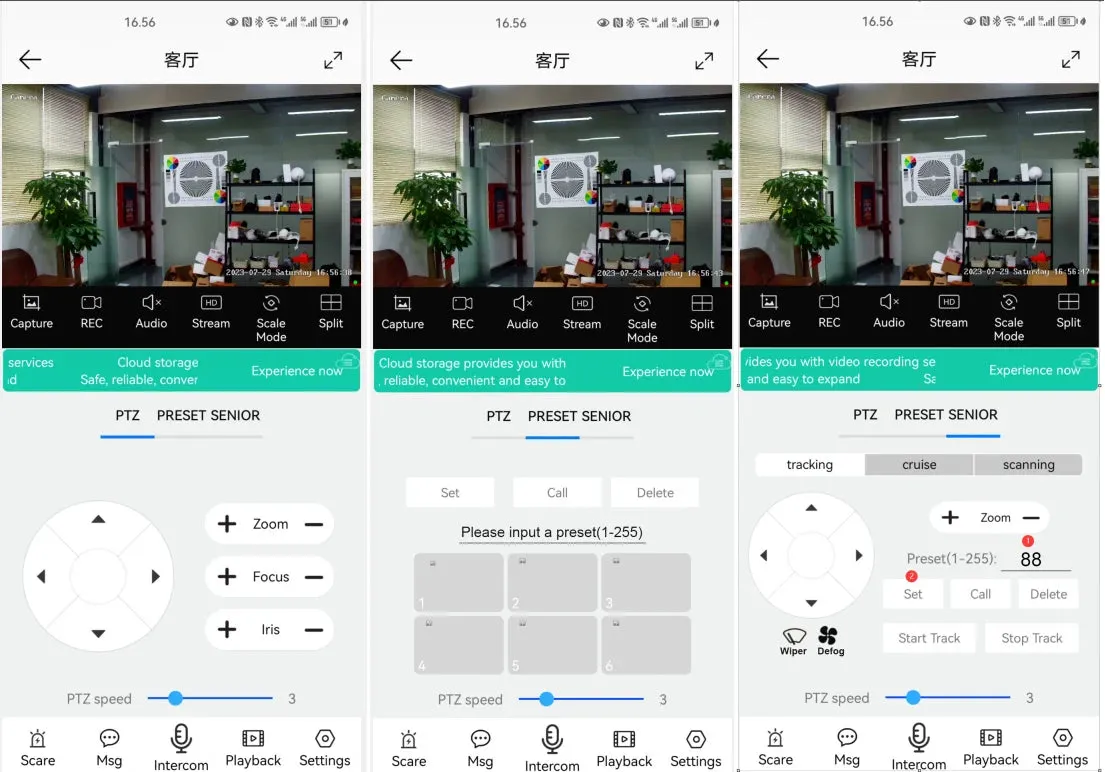

1. Before starting the tracking, the user can set a starting tracking position, we define this position as the 88th preset position (HOME position). When tracking is turned on, the camera will automatically rotate to this position and then wait for tracking. When a person or car is detected, the camera automatically starts tracking. After the tracking is over, the camera will automatically return to this position to wait for the next tracking.

2. The camera supports adjusting the rotation speed of the tracking.

If the tracking speed is too fast or too slow, the user can use the programming function to set the tracking speed according to the actual application scenario.

3. Support tracking time setting

Users can set each tracking time of the camera according to actual needs.

a: The user can set the tracking time length for each tracking as: 15-60 seconds. After the tracking duration is reached, the camera will discard the tracking target and automatically return to the initial position to wait for the next tracking.

b: User can also perform continuous tracking mode for each tracking. When the camera detects a person or car, as long as the tracking target does not disappear, the camera will keep tracking the target.

Cruise tracking: the user can set some preset positions, up to 32 preset positions are supported

The camera supports cruising between multiple preset positions. When the camera finds the tracking target, it will automatically start the tracking function (tracking speed and tracking time are the same as fixed-point tracking). When tracking the target for hours, the camera automatically resumes cruising.

Humanoid tracking video

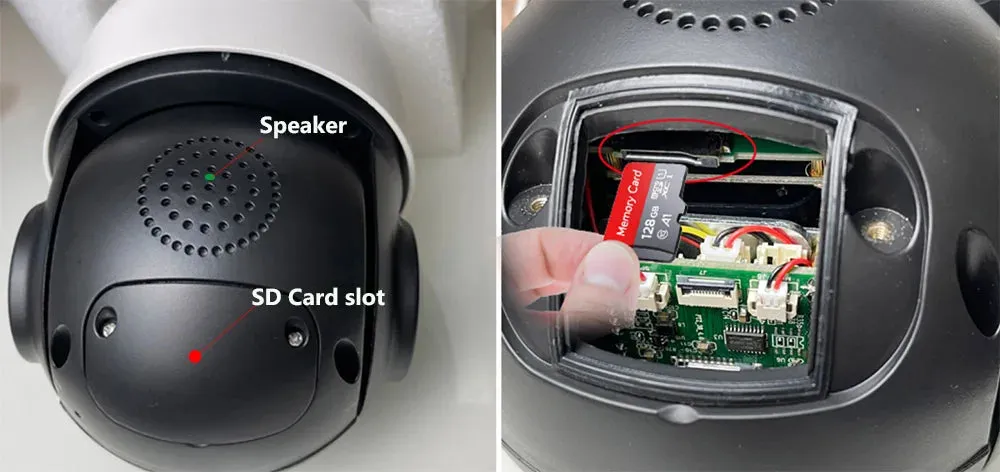

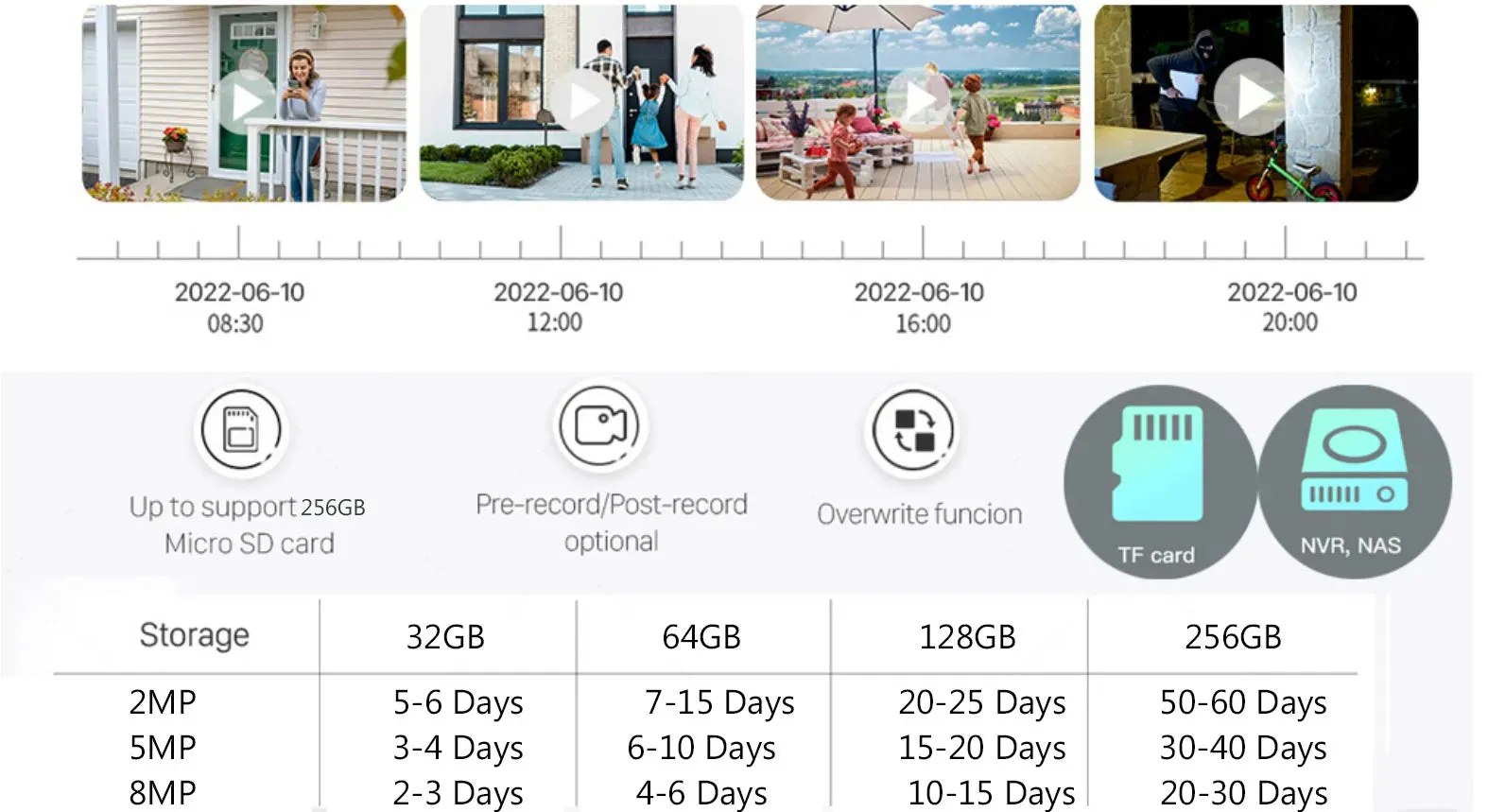

Support SD card storage:Max support 256GB

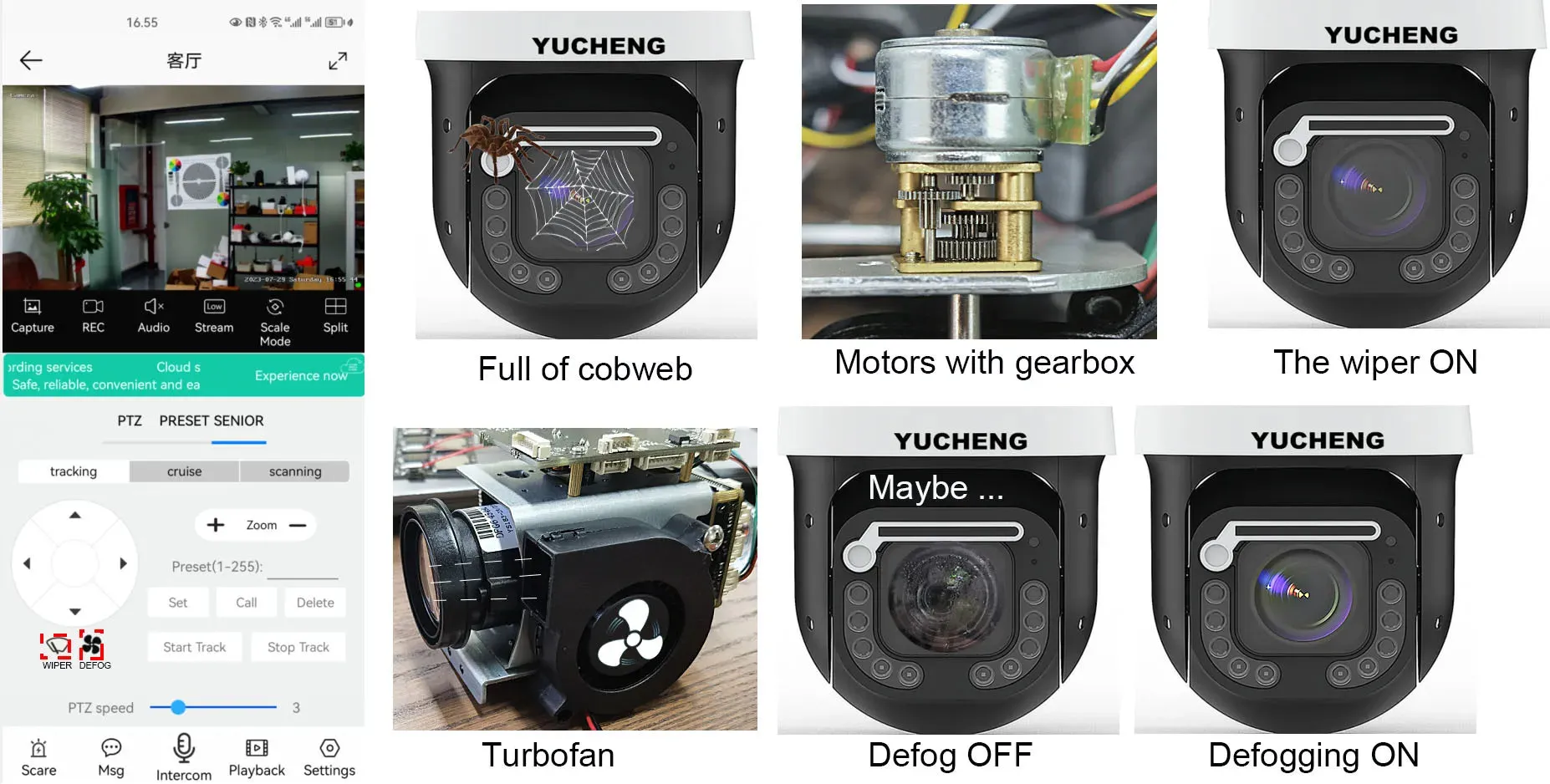

WIPER and Defogging function:

Camera technical parameters:
