Product Details
＋

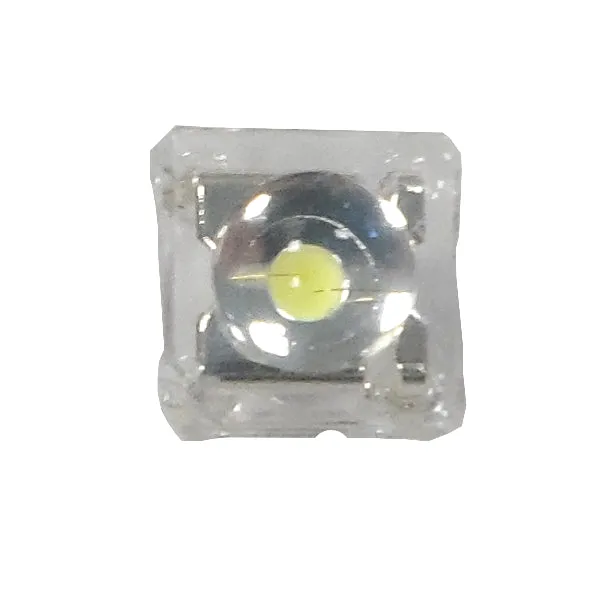

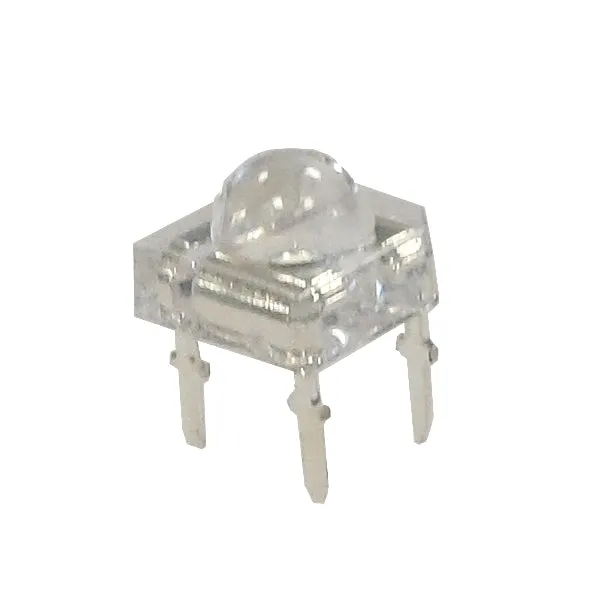

Blue 5mm Super Flux LED with a viewing angle of 80 degrees. Luminous intensity 1350mCd.
| Forward voltage drop: | 2.9V to 3.5V |
| Viewing angle: | 80 degrees |
| Max forward current: | 20 mA |
| Luminous intensity: | 1100-1600 mCd (@20mA) |
| Lens types: | Water clear |
For Electrical Pin Out information see the datasheet.
