Product Details
＋

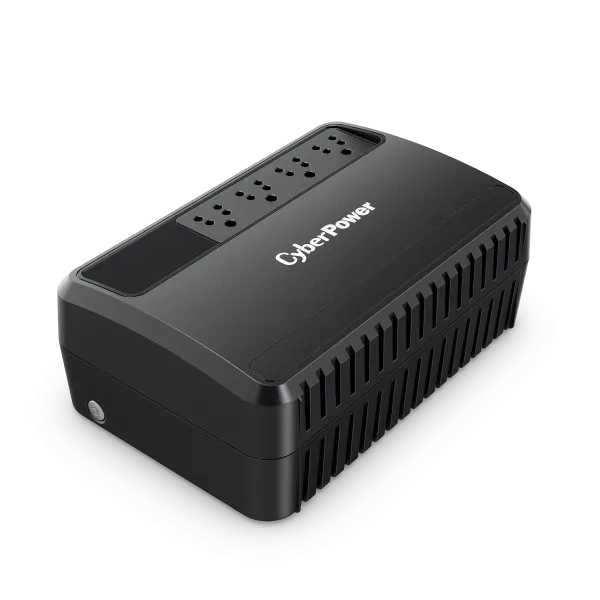

Cyber Power UPS 1 KVA BU1000E
CyberPower BU1000E
FEATURES
- Line-interactive UPS Topology
- Automatic Voltage Regulation (AVR)
- Simulated Sine Wave Output
- Generator Compatible
- Overload Protection
- EMI and RFI Filtration
- LED Status Indicator
- Configurable Alarm
- Brick Form Factor
GENERAL
GENERAL
Phase
| Single Phase |
UPS Topology
| Line-interactive |
INPUT
Generator Compatibility
| Yes |
Nominal Input Voltage ( Vac )
| 220 ± 10% |
Input Voltage Range ( Vac )
| 140 ~ 300 |
Input Frequency ( Hz )
| 50 ± 10 |
| 60 ± 10 |
Input Frequency Detection
| Auto-sensing |
Rated Input Current ( A )
| 4.55 |
Input Connector Type
| IN/ZA |
Power Cord Length (ft.)
| 4 |
Power Cord Length (m.)
| 1.2 |
OUTPUT
Capacity (VA)
| 1000 |
Capacity (Watts)
| 600 |
On Battery Waveform
| Simulated Sine Wave |
On Battery Voltage(s) ( Vac )
| 220 ± 10% |
On Battery Frequency ( Hz )
| 50 ± 1% |
| 60 ± 1% |
Automatic Voltage Regulation (AVR)
| Double Boost, Single Buck |
Overload Protection
| Circuit Breaker |
Outlet(s) - Total
| 4 |
Outlet Type
| IN/ZA x 4 |
Outlet(s) - Battery Backup
| 4 |
Typical Transfer Time ( ms )
| 4 |
BATTERY
Typical Recharge Time ( Hours )
| 8 |
Start On Battery
| Yes |
User-replaceable
| No |
Battery Type
| Sealed Lead-acid |
SURGE PROTECTION & FILTERING
EMI/RFI Filtration
| Yes |
MANAGEMENT & COMMUNICATIONS
LED Indicators
| Power On , Line Mode , Battery Mode , Low Battery |
Audible Alarms
| Battery Mode , Low Battery , Overload , UPS Fault |
PHYSICAL
Form Factor
| Brick |
Enclosure Construction
| Plastic |
Color
| Black |
PHYSICAL SIZE - UPS MODULE
Dimensions (WxHxD) (in.)
| 7.48 x 4.35 x 11.42 |
Dimensions (WxHxD) (mm.)
| 190 x 110.5 x 290 |
Weight (lbs.)
| 15.21 |
Weight (kg.)
| 6.9 |
ENVIRONMENTAL
Operating Temperature (°F)
| 32 ~ 104 |
Operating Temperature (°C)
| 0 ~ 40 |
Operating Relative Humidity (Non-condensing) ( % )
| 0 ~ 90 |
Operating Elevation ( feet/meters )
| 0-10,000 feet (0-3,000 meters) |
Storage Temperature (°F)
| -4 ~ 122 |
Storage Temperature (°C)
| -20 ~ 50 |
Storage Relative Humidity (Non-condensing) ( % )
| 0 ~ 90 |
Storage Elevation ( feet/meters )
| 0-10,000 feet (0-3,000 meters) |
Online Thermal Dissipation ( BTU/hr )
| 45 |
CERTIFICATIONS
Certifications
| BIS |
RoHS
| Yes |
| BIS |
