Name: Flowline LU23-41
SKU: 958419

Product Details ＋

Product Attribute	Attribute Value
IP Rating	IP65
Measurement Range	0.66-18 ft
Mounting Type	NPT 2 in
Output	4-20 mA
Sensing Mode	Ultrasonic
Series
Special Features	with FOB
Supply Voltage	24 VDC
Termination	Cable
Type	Level Transmitter

Overview

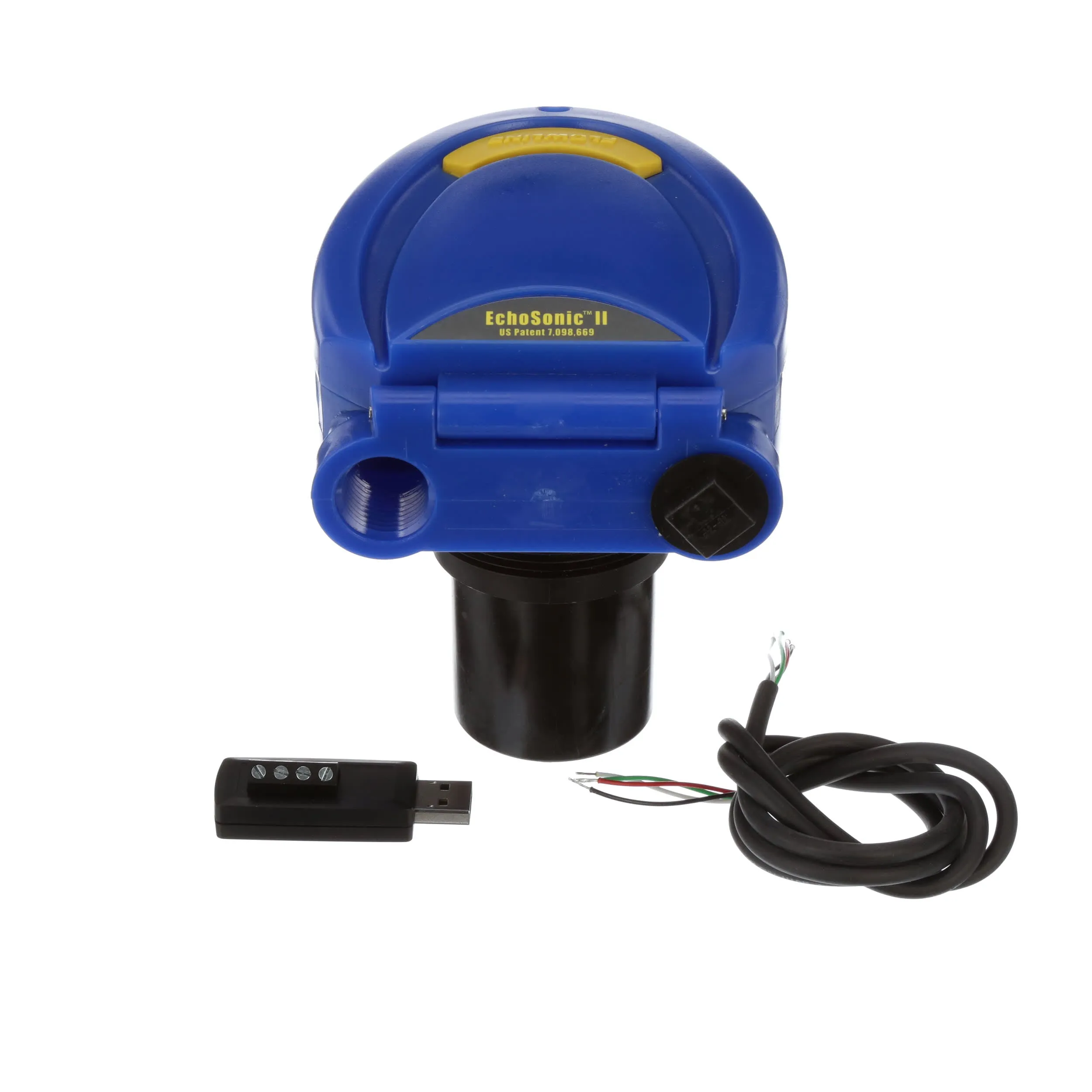

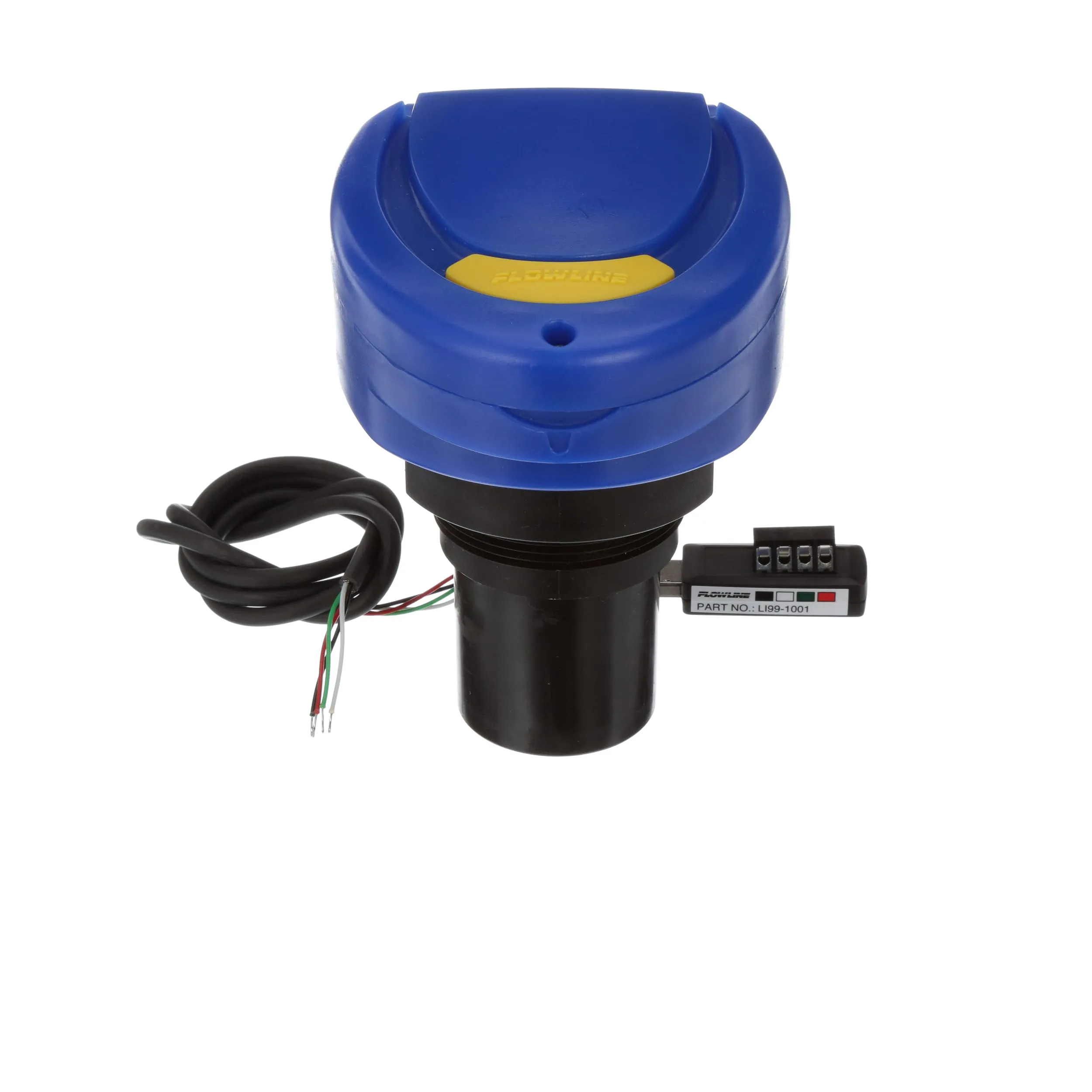

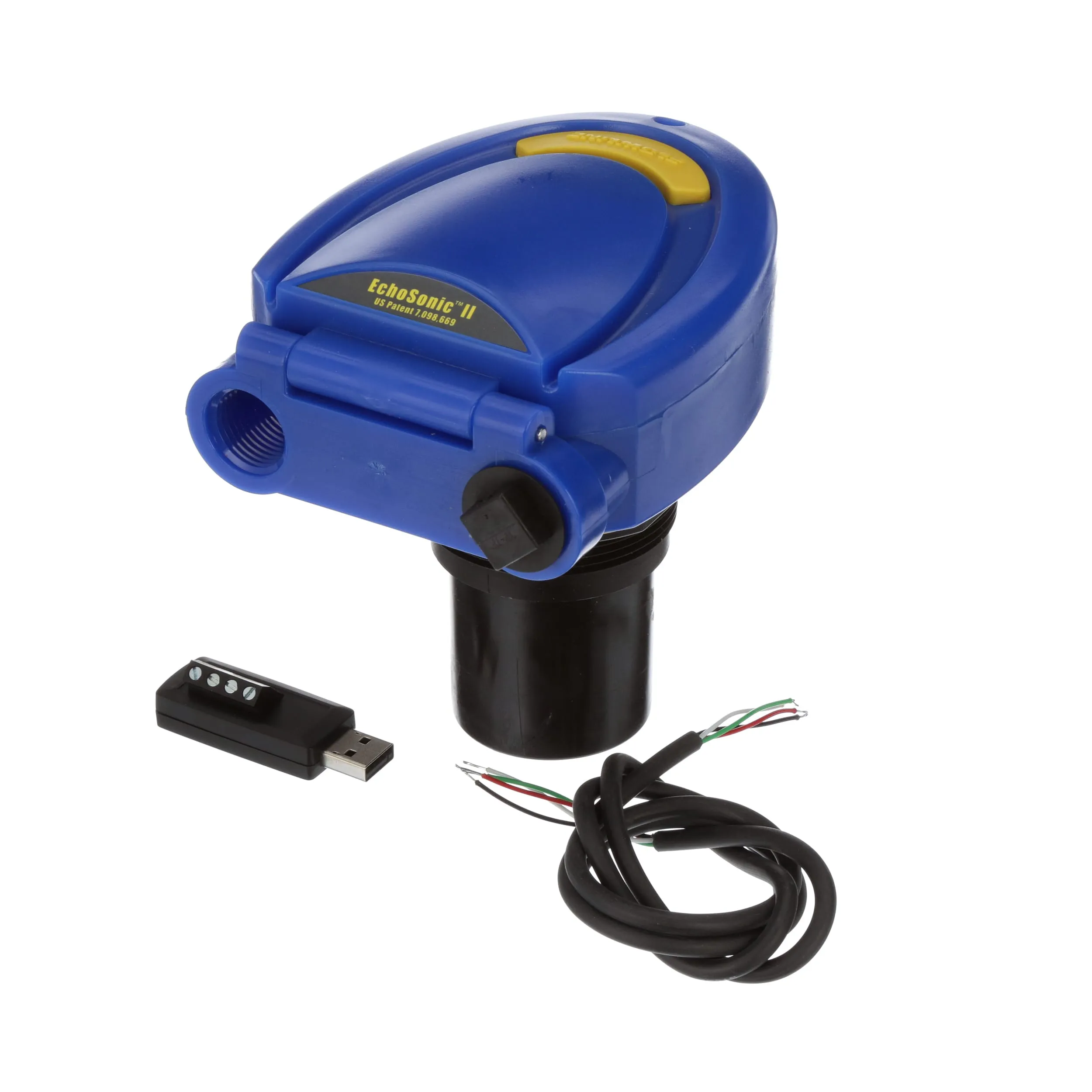

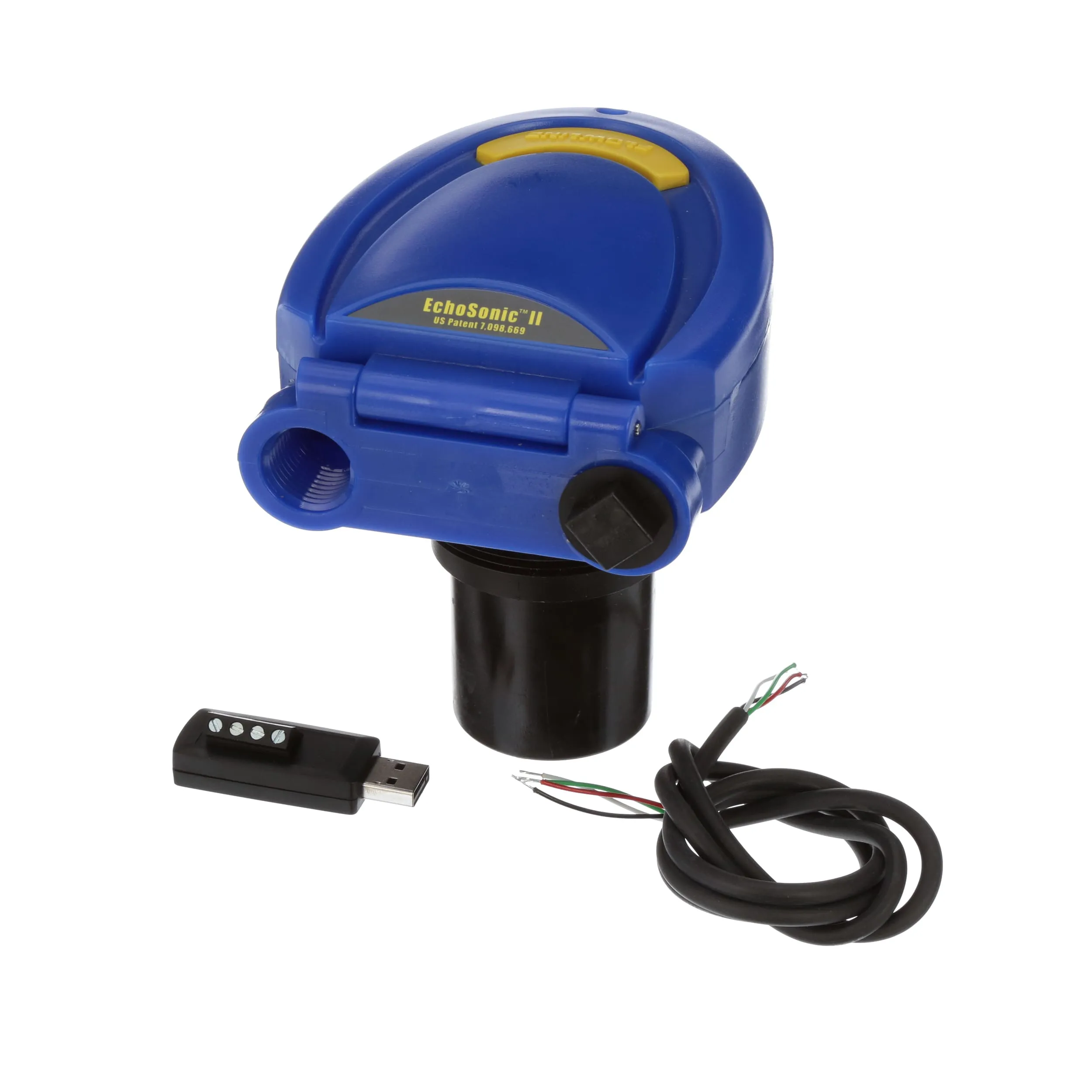

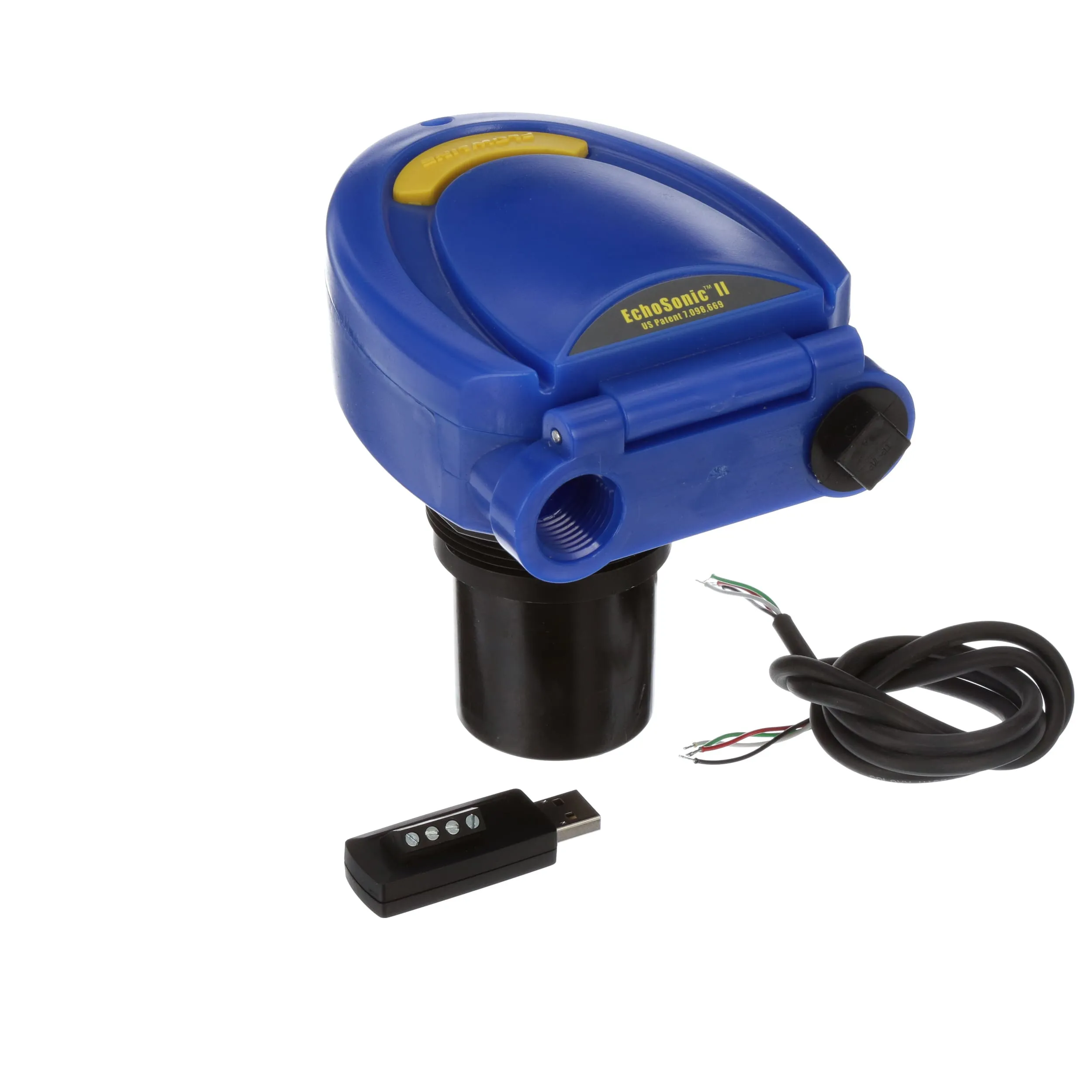

The general purpose ultrasonic level transmitter provides continuous level measurement up to 32.8’ (10m) (LU23 is 5.5 m) with a 4-20 mA signal output, and is configured via our free Webcal software. This non-contact liquid level sensor is ideally suited for corrosive, ultrapure, sticky or dirty liquids, and is broadly selected for bulk storage, day tank, lift station and process tank level applications. Features

Offered in 4 measurement ranges from 9.8’ (3m) to 32.8’ (10m) (LU23 is 5.5 m)

DSP auto adaptive filters enable plug and play operation optimizing signal output filtering and obstacle recognition

Configuration is fast and easy via WebCal software and USB adapter

Narrow 2" or 3" beam width for applications with limited measurement space

Short 4" or 8" dead band maximizes the measureable filling capacity of the tank

PVDF transducer and NEMA 4X polycarbonate enclosure for corrosive liquids

Automatic temperature compensation for accurate measurement
