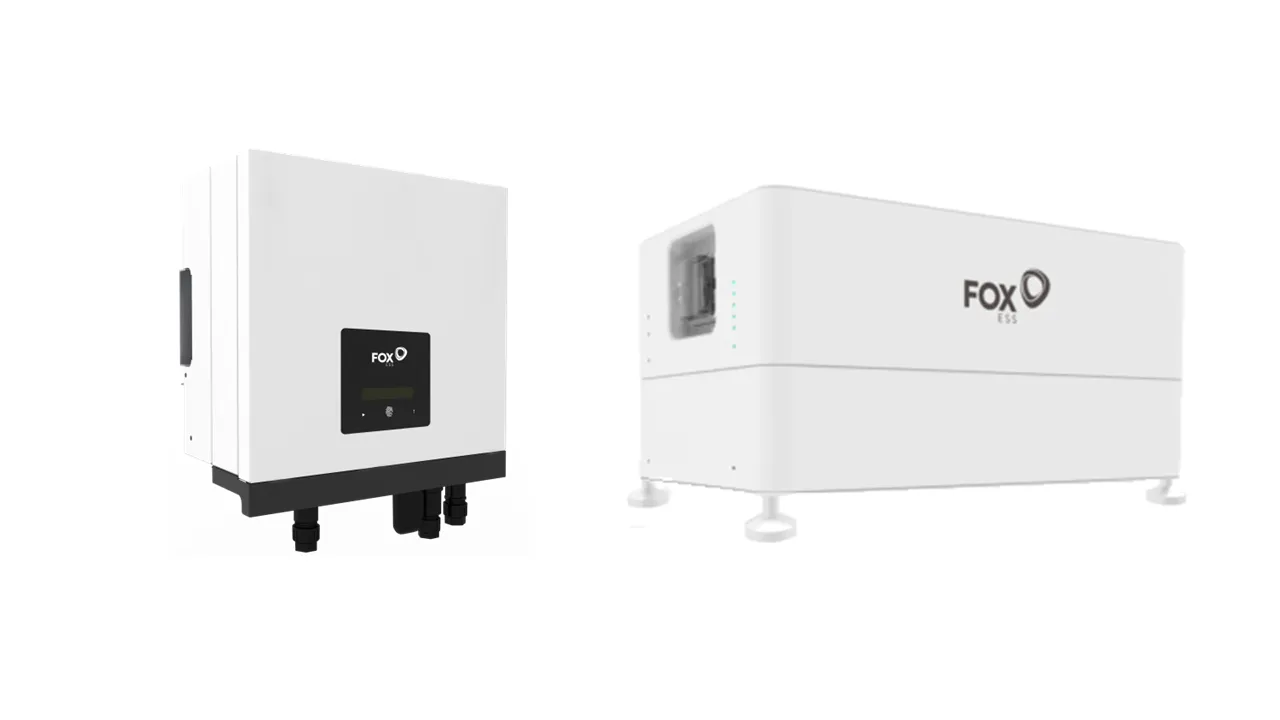

Fox solar battery kit ESS High Voltage complete kit: Cube HV ECM2900 5.76kWh & Fox AC 5.0kW charger
#2: FE-AC1-5.0-ECS2900-2-SL
Complete kit includes:
| 1 x Fox ECS 2.88kWh HV Battery (Master)-V2.0 Connector A | FE-HV-ECM-2900-4A2C | |
| 1 x Fox ECS 2.88kWh HV Battery (Slave)-V2.0 Connector A | FE-HV-ECS-2900-4A2C | |
| 1 x Fox AC 5.0kW Charger Inverter | FE-AC1-5.0 |
Fox ECS 2.88kWh HV Battery -V2.0 (1x Master 1x Slave)
Energy cube is a high-performance, scalable battery storage system. The modular design allows for maximum flexibility, making it suitable for a broad range of storage applications. Additional batteries can be installed in series, allowing for a maximum storage capacity of 20.16 kWh. Installation is easy, with a plug and play solution that can save valuable time for installers.
- 2.88kWh Capacity
- Scalable to 20.16kWh
- 90% Depth of Discharge
- Wide Temperature Tolerence
- Easy Installation
- CAN/RS485 Communication
- High Voltage
The quick & easy install feature allows for more ECS2900 battery modules to be added post installation.
- Weight: 37.95kg
- Rated Power: 2,880
- Battery Type: Lithium Ion
- Nominal Energy: 2880 Wh
- Depth of discharge: 90.00 %
- Voltage: 52 V
- Continuous Discharge Rate (Normal Use): 1,440 W
- Maximum Discharge Rate (5 Minutes): 2,880 W
- Surge Discharge Rate (15 Seconds): 3,000 W
- Maximum Charge Rate (5 Minutes): 2,880 W
Charger - Fox AC 5.0kW
The Fox system is easy to install and will save you time spent on installation. Remote monitoring is also available via your smartphone or web portal.
- Weight: 25kg
- Rated Power: 5,000 W
- Uses high voltage batteries FE-HV2600
- High round-trip efficiency of 97% BMS unit required 2 x HV2600 batteries minimum
- Compatible with all HV Fox battery range - so long as Master and Slave same size
- IP65 rated - suitable for outdoor installations
- Remote monitoring via web portal or smartphone
- Easy to expand battery capacity
CT Clamps included
