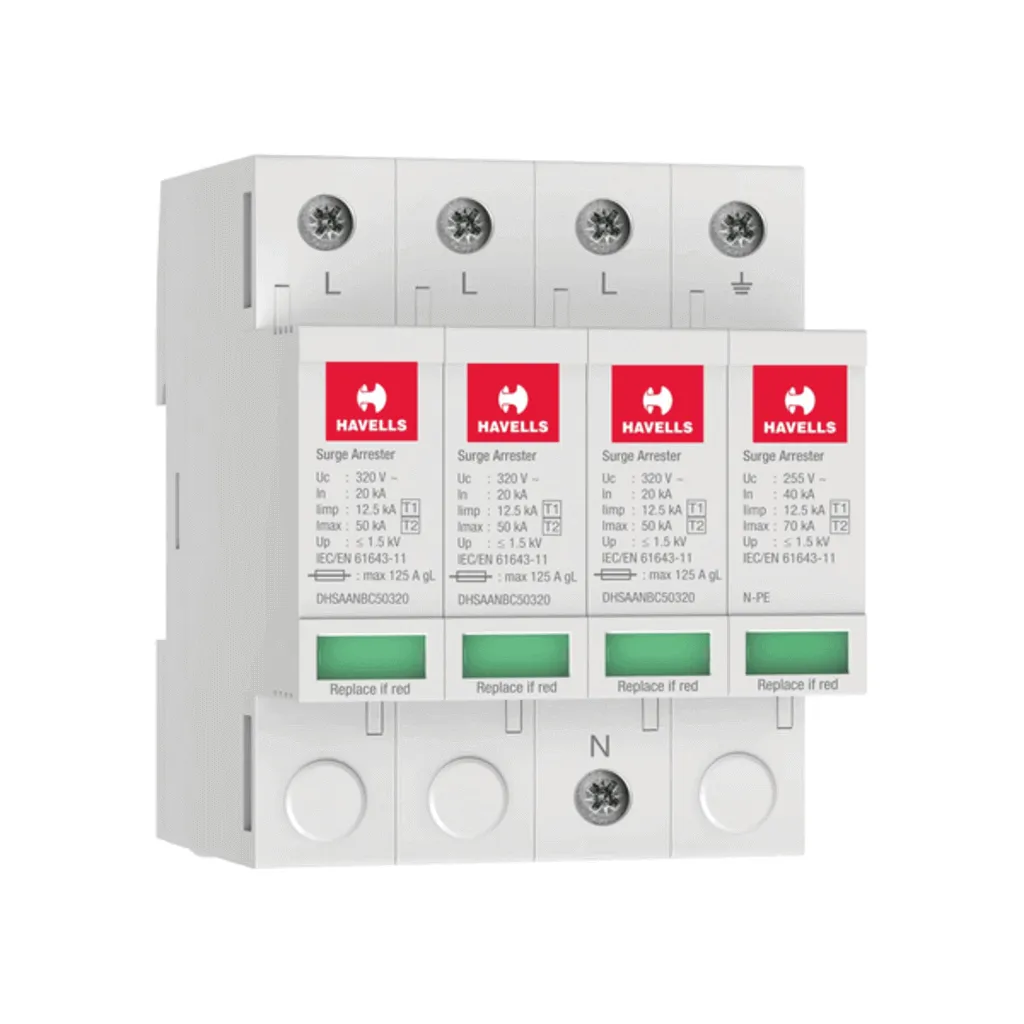

Product Description
-
High Discharge Current
-
Imax 50 kA (L – N) 70 kA (N – E)
-
Pluggable Cartridges
-
Faulty cartridges can be replaced without changing the entire SPD
-
Cartridges can be replaced with mains voltage ON
-
All cartridges are marked with characteristics for ease of maintenance
-
Remote Signaling Contact
-
Option to remotely monitor the status of the surge protector
-
Simplified cabling thanks to a single terminal for monitoring all poles.
-
Finger Touch- Proof
-
Terminal - IP 20
-
High Terminal Capacity
-
35 SQ. mm Terminals
-
Dedicated Protection of the Neutral
-
The 1P N and 3P N SPDs with dedicated protection of the neutral pole discharge the common and differential mode overvoltages that may occur in installations with TT and TNS systems, when there is a voltage surge
-
Simple, professional installation of arrester modules
-
Mechanically coded cartridges to avoid cartridge replacement errors
-
Ease of Installation
-
Dual position of Din-rail clip
Product Specification
|
Brand |
Havells |
|
Model Number |
DHSAARBC50320 |
|
Pole |
TP N |
|
Product Type |
Surge Protection Device |
|
Type |
1 2 AC |
|
Uc (V) |
320 |
|
In (kA) |
20 |
|
Iimp (kA) |
12.5 |
|
Imax (kA) |
50 |
|
Up (kV) |
1.5 |
