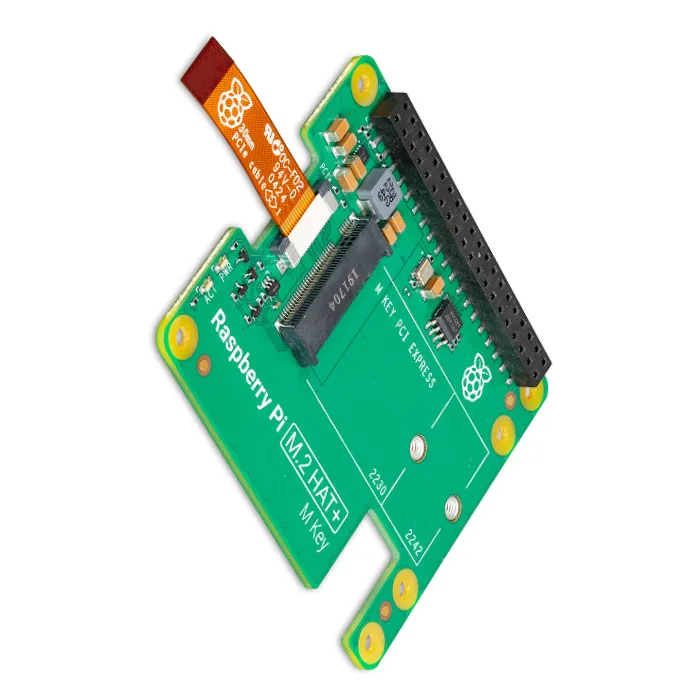

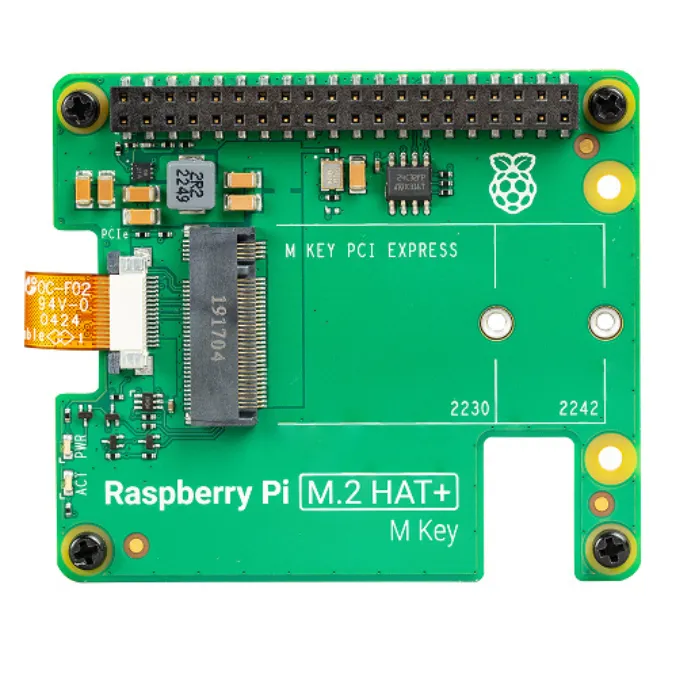

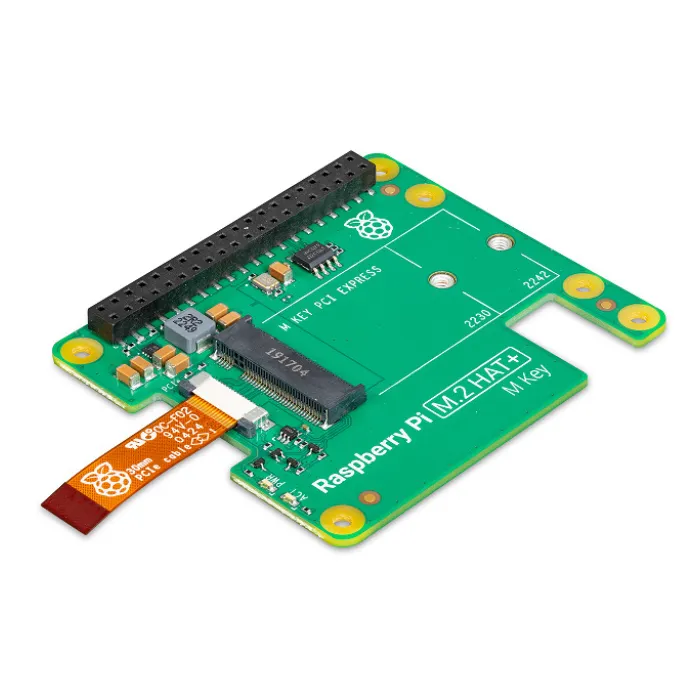

Official Raspberry Pi M.2 HAT

The Raspberry Pi M.2 HAT connects M.2 peripherals like NVMe drives and AI accelerators to the Raspberry Pi 5’s PCIe 2.0 interface, supporting data transfers up to 500 MB/s. The Raspberry Pi HAT features a 16-pin FPC connector and supports M.2 M key devices in 2230 and 2242 form factors. With up to a 3A power supply, it enhances performance for demanding applications. The Raspberry Pi M.2 HAT is auto-detected by Raspberry Pi software and comes with a 16mm stacking header and spacers for easy installation with the Active Cooler.

Key Features

• High-Speed Data Transfer: The M.2 HAT offers lightning-fast data transfer speeds of about 450 Mbytes/s thanks to its 4 Gbits/s PCIe 2.0 interface. Connecting NVMe SSD drives and other PCIe devices is therefore perfect, guaranteeing quick access to huge datasets, seamless multimedia streaming, and effective data processing.
• Compliance with HAT Specifications: The M.2 HAT is compatible and integrates seamlessly with your Raspberry Pi 5 because it complies with the HAT specification. It is the ideal complement to your Raspberry Pi system because of its standardization, which ensures dependable performance and user-friendliness.
• Automatic Detection: The M.2 HAT is automatically identified and configured using the most recent Raspberry Pi firmware and software. Because of its plug-and-play capability, complicated setup processes are no longer necessary, freeing you time to concentrate on your projects.

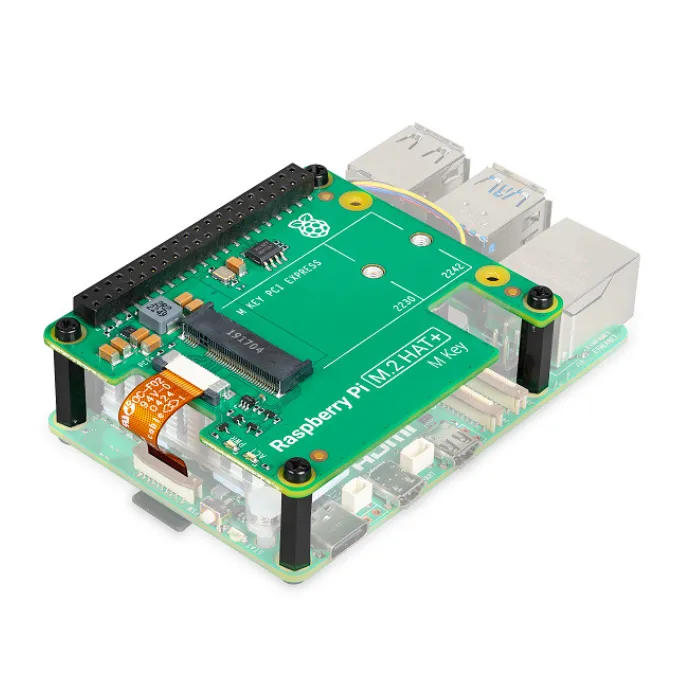

• Complete Installation Kit: The M.2 HAT is easy to install even with the Active Cooler on your Raspberry Pi 5 thanks to its 16mm stacking header, spacers, and screws. This well-considered design keeps your Raspberry Pi cool and functional while enhancing its functionality.

Package Includes

1 x Official Raspberry Pi M.2 HAT

Specifications
