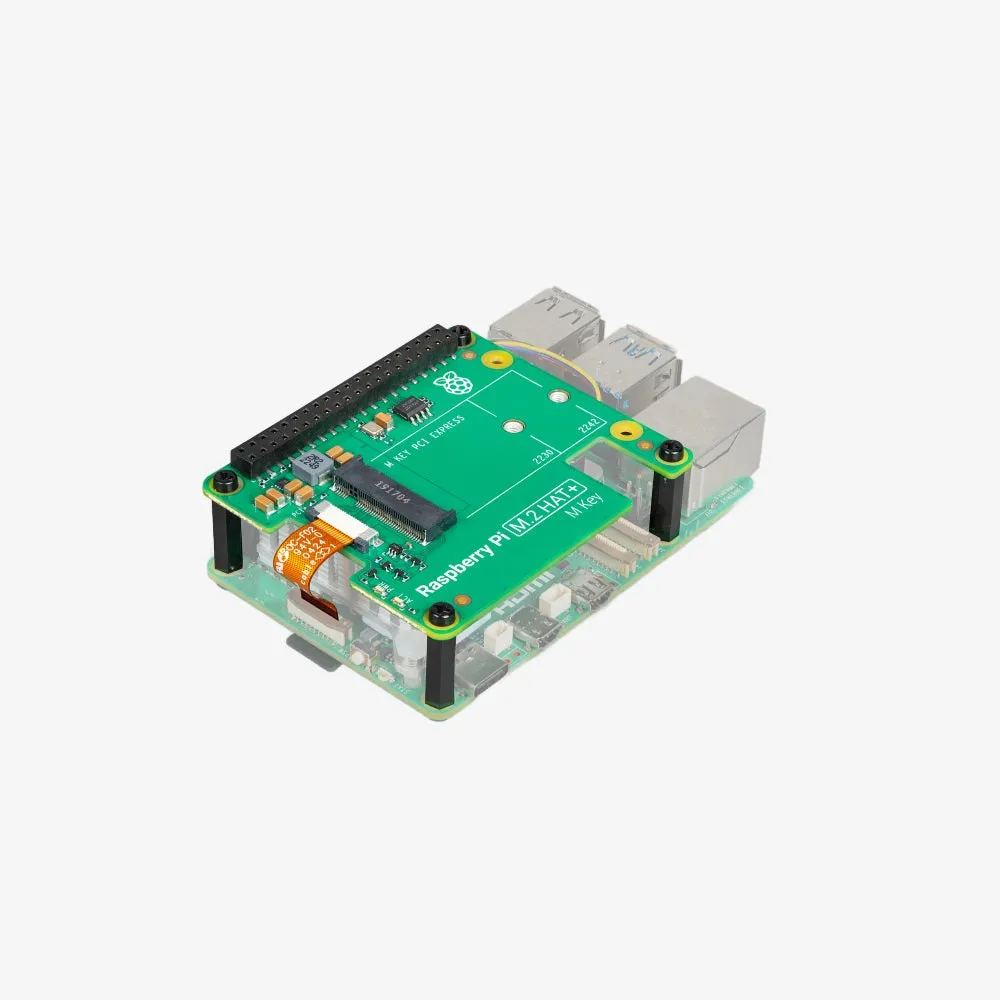

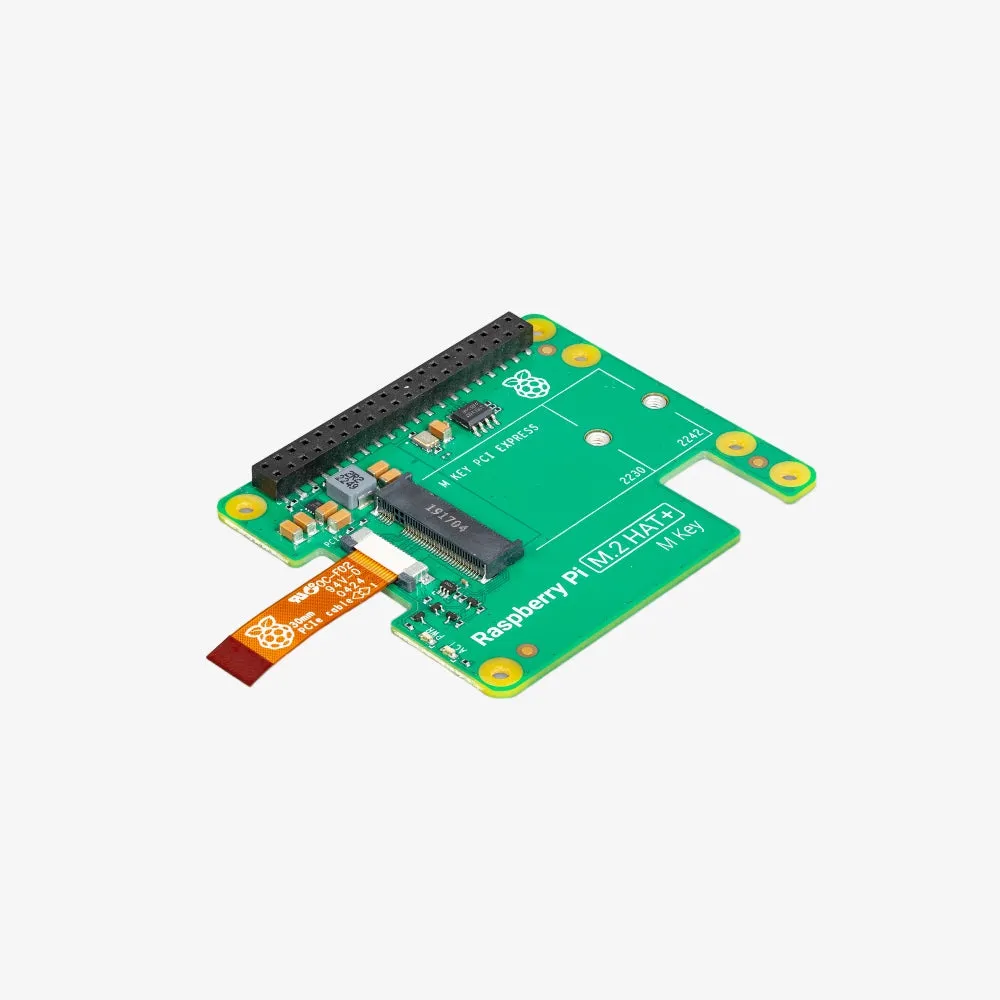

The Raspberry Pi M.2 HAT is a versatile mechanical adapter that bridges the Raspberry Pi 5’s single-lane PCI Express 2.0 interface to devices with an M.2 M key edge connector. Designed for devices in the 2230 and 2242 form factors, this HAT enables seamless connectivity and supports up to 3A power delivery to connected M.2 peripherals.

Fully conforming to the Raspberry Pi HAT specification, the M.2 HAT is autodetected by the latest Raspberry Pi software and firmware. It comes with all necessary accessories, including a 16mm stacking header and threaded spacers, ensuring compatibility with the Raspberry Pi 5 even when the Raspberry Pi Active Cooler is installed.

Features

• Supports single-lane PCIe 2.0 interface with a peak transfer rate of 500 MB/s
• Compatible with M.2 M key edge connector devices in 2230 and 2242 form factors
• Delivers up to 3A power to connected M.2 devices
• Includes power and activity indicator LEDs
• Fully conforms to the Raspberry Pi HAT specification

Included Accessories

• Ribbon cable for connecting to Raspberry Pi 5
• 16mm stacking header
• Threaded spacers and screws
• Knurled double-flanged screw for securing the M.2 peripheral
