Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | MS3106F18-1S |
| Cable end 1, Connector Type | M18 Male |
| Cable end 2, Connector Angle | None |
| Cable end 2, Connector Type | Pigtail |
| Cable Length | 3 m (10 ft.) |
| Cable Type | Single Ended |
| Conductor Size | 24 AWG |
| Jacket Material | PVC (Polyvinyl Chloride) |
| Number of Conductors | 8 |
| Number of Connectors | 1 |
| Number of Contacts | 10 |
| Series | |
| Shielding | Braid |
| Special Features | Abrasion-resistant |
Overview

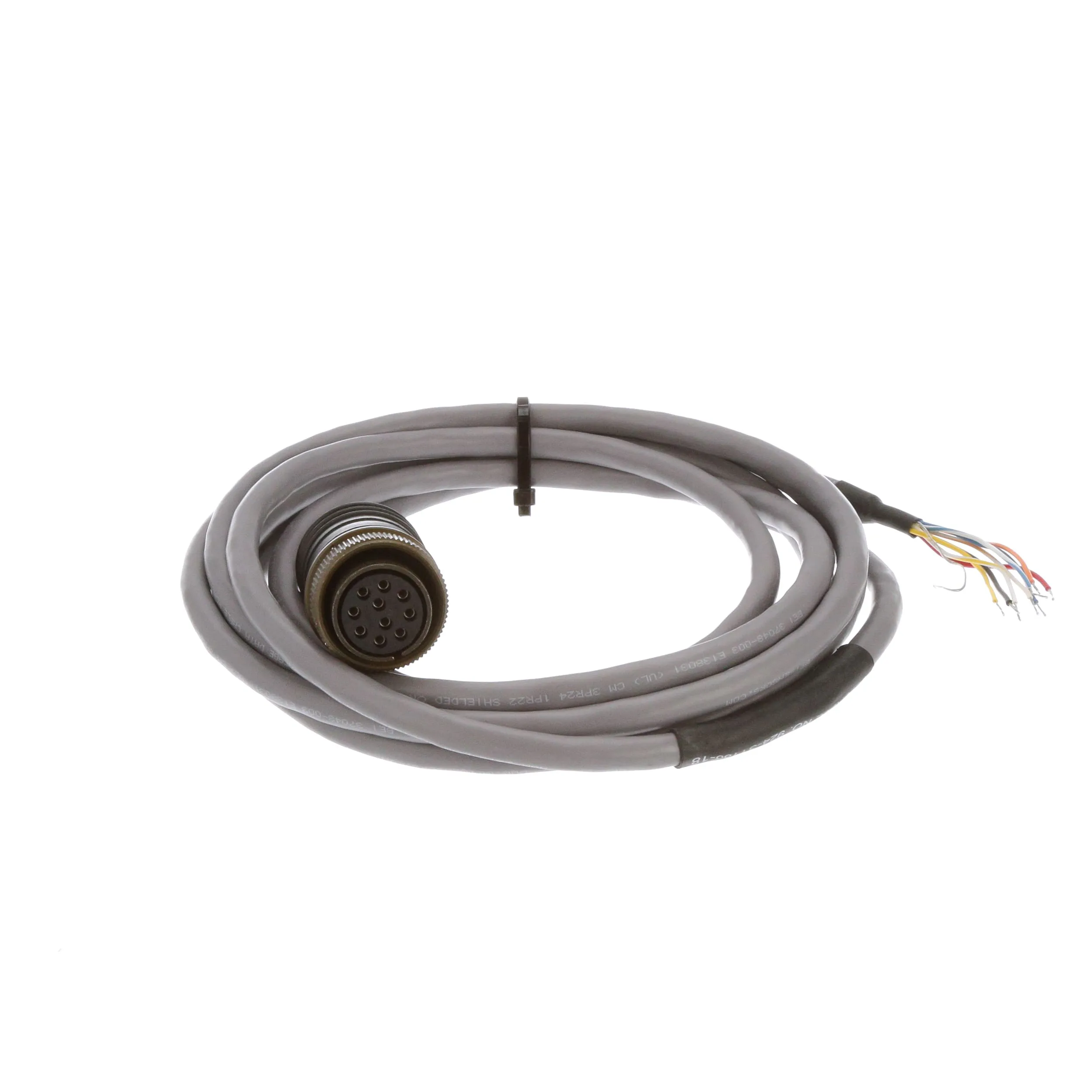

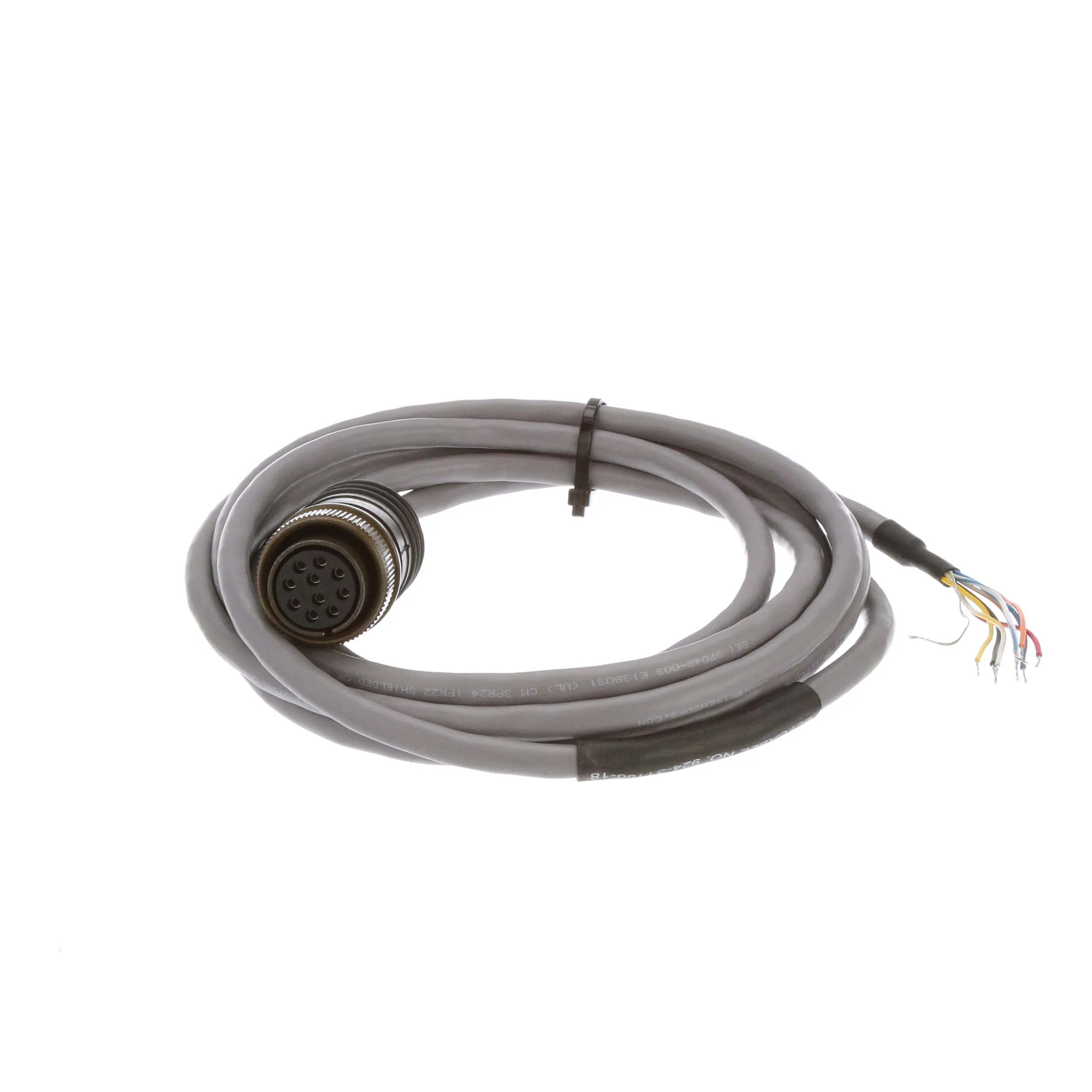

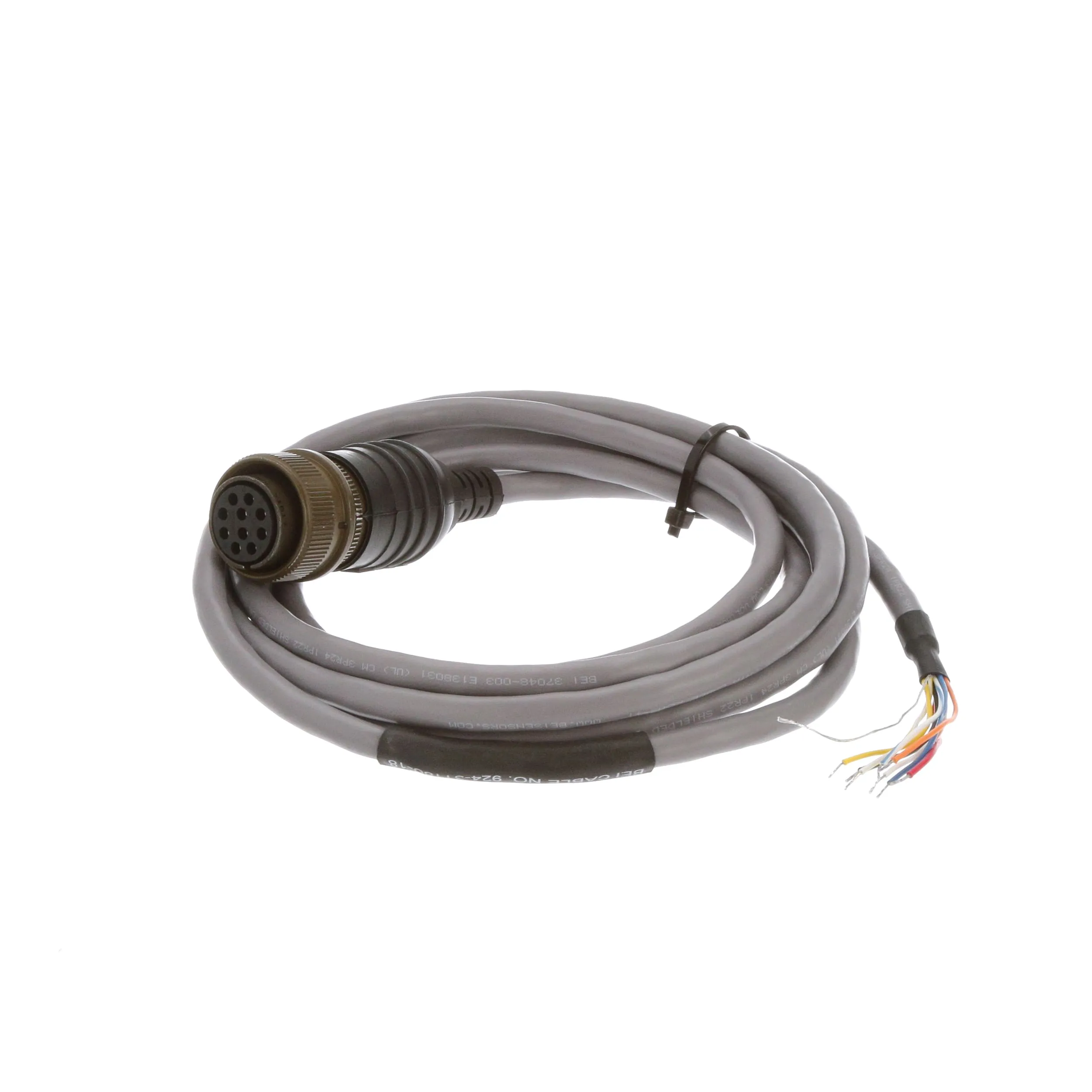

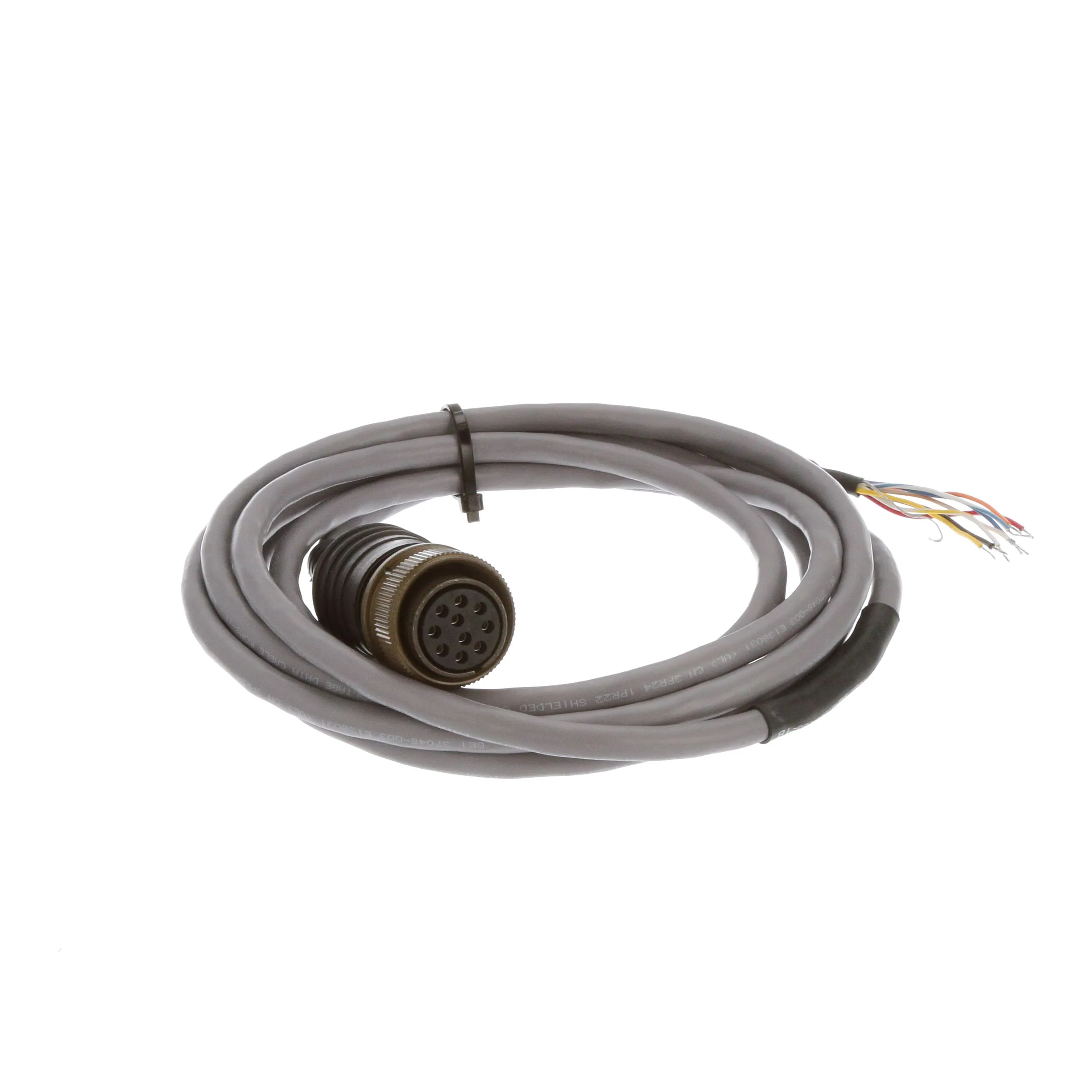

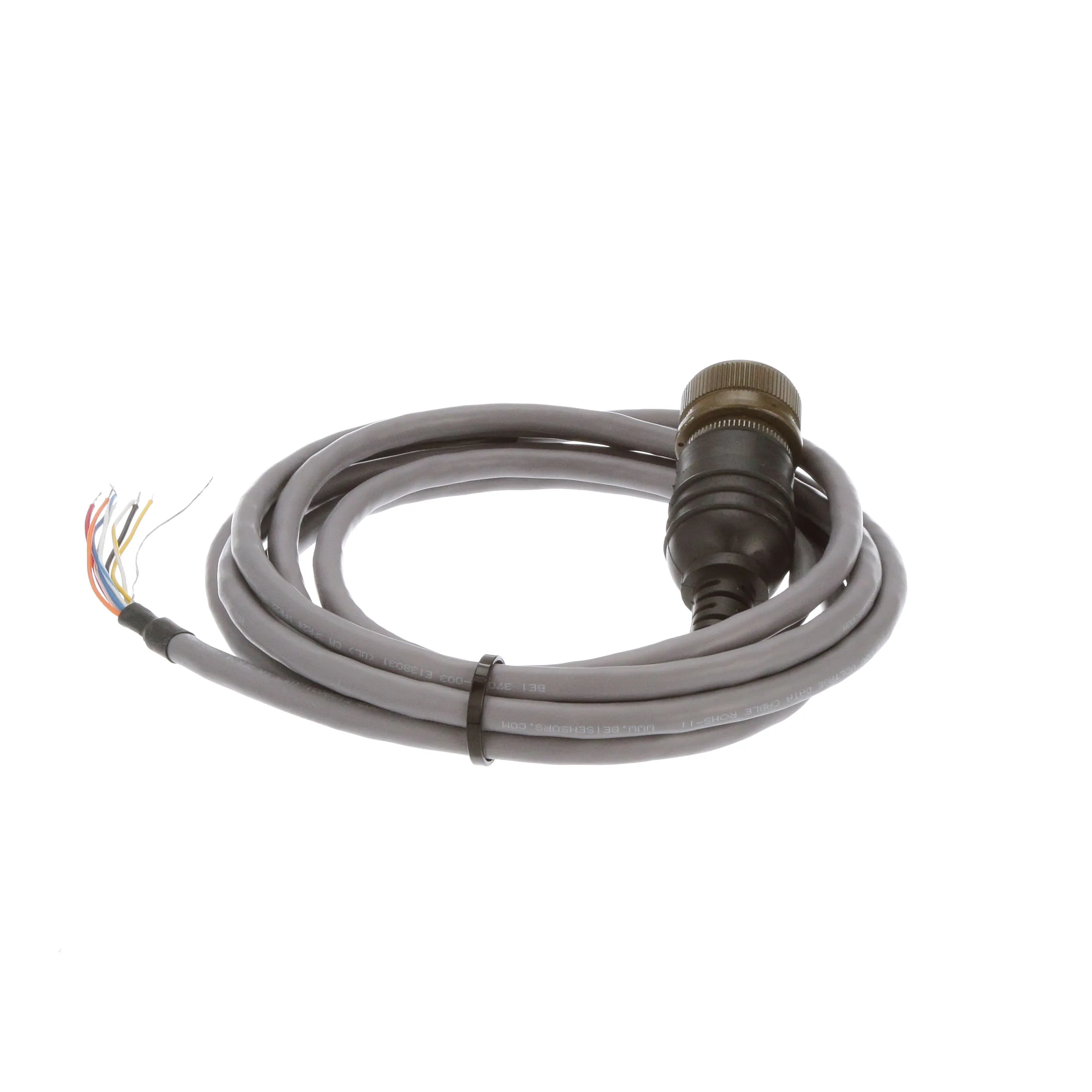

BEI Sensors Cable Assemblies for Incremental Encoders - M12 Cable Assembly:
This cable assembly is built using high quality custom BEI standard cable consisting of four, low capacitance twisted pairs (AWG 24) with an overall shield, provides excellent noise immunity. Extra large conductors (AWG 20) for power and signal ground, all within an abrasion-resistant PVC jacket create a durable cable for a variety of applications.
Features:
