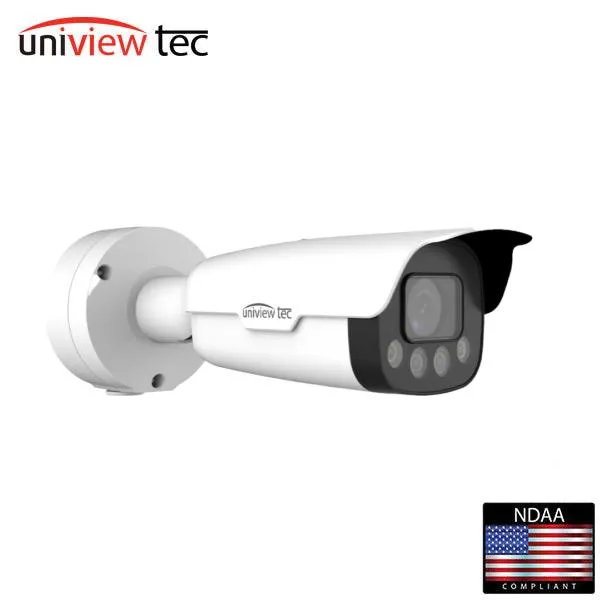

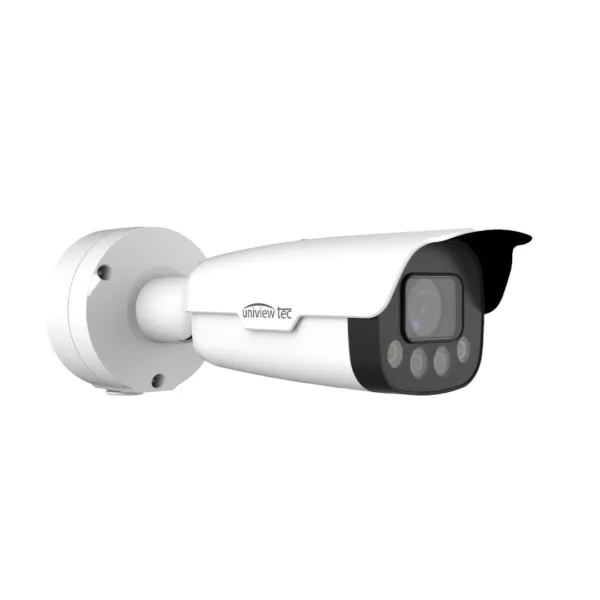

OpticsStarlight optical sensor and integrated IR illuminator produce clear images in night environments and reduce light pollution4 LED IR illumination beads provide up to 50m illumination2MP industrial-grade sensor delivers 1920 x 1080 imagesMotorized zoom lens enables flexible focal length adjustment and easy installationAutomatic gain control, white balance, and WDR for various light conditionsCompressionAutomatic gain control, white balance, and WDR for various light conditionsUp to 1080P @ 60fps image collection format1 image stream, 3 video streamsUp to 1080P @ 60fps live video streamsAdvanced H.265 encoding technology improves compression efficiencyCustom OSD allows various vehicle information to be overlaid on the video imageFunctionsBuilt-in vehicle & license plate recognition algorithm can recognize standard license plates of multiple countriesSupports capturing vehicle head onlySupports allowlist and blocklist configurationSupports vehicle access control when connected to a barrierSupports Micro SD cards of up to 128GBSupports Automatic Network Replenishment (ANR), the camera can automatically store video to its SD card in case of network disconnectionSupports audio acquisition and intercomNetworkNetwork auto-adaptability ensures fluent live video in relatively bad network conditions such as packet lossSupports SNMPSupports UNP for NAT traversal between public and private networksSupports integration by the third party via SDK or HTTPNetwork SecuritySupports authorized user access by password. Weak password detection and account lock-up when failed login attempts reach the upper limit enhance password securitySupports HTTPSRTSP authentication prevents unauthorized video stream requestsIP address filtering prevents illegal access from untrusted IP addressesGateway ARP protection prevents MAC address spoofingStructureFully Adheres to National Defense Authorization Act (NDAA) GuidelinesSupports DC 12V, and PoE (802.3at) power suppliesCast aluminum body offers excellent heat dissipation3-axis mounting bracket for various installation scenariosJunction box for cablingIP67 and IK10 ratingsSupported by uniview tec Guard Station Client Software and Guard Viewer Mobile App’s for iPhone and Android Devices
| Camera | |
|---|---|
| Sensor | 1/2.8” 2MP CMOS |
| Focal length | 4.7 to 47mm, motorized zoom |
| Shutter | Auto / Manual, range: 1/25 to 1/100000 s |
| Minimum illumination | 0.001lux (F1.6) |
| Image | |
| Image collection format (fps) | 1080P @ 25 (default), 1080P @ 30, 1080P @ 50, 1080P @60 |
| Resolution | Main stream: 1080P (default), 720P, D1 Sub stream: 720P (default), D1, 2CIF, CIF Third stream: D1 (default), 2CIF, CIF |
| Frame rate (fps) | 60, 50, 30, 25 (default), 22, 20, 18, 16, 15, 12.5, 10, 8, 6, 5, 4, 3, 2, 1 |
| Video compression | H.264 (default), H.265 |
| ROI (Region of Interest) | Supports up to 8 regions |
| Video OSD | Supports 8 overlay areas and allows contents including date, time, date & time, zoom ratio, custom contents |
| Image OSD | Supports 8 overlay areas and allows contents including time, license plate number, device ID, camera ID, allowlist, image authentication ID, custom contents (3 items), location |
| Smart | |
| Application scenario | Vehicle speed ?30km/h (18.5mph); Supports simultaneous application to entry / exit scenes |
| Vehicle detection mode | Video (default) or inductive loop |
| Capture vehicle head only | Support |
| License plate number recognition | Supports recognition of license plates with numbers and letters by default |
| List configuration | Supports allowlist and blocklist configuration, each list allows 20,000 items Supports import, export, add, and delete operations |
| Barrier opening policy | Open barrier only for the recognized vehicles Open barrier for all vehicles Open barrier only for vehicles on the allowlist Open barrier for vehicles not on the blocklist Configurable Boolean output ID |
| Storage | |
| Edge Storage | Supports ANR with a Micro SD card, up to 128GB |
| Structure | |
| Illumination | Built-in integrated illumination module, including 4 IR LEDs, 50m illumination distance, automatic on/off control |
| Sunshield | Long sunshield |
| Bracket | 3-axis mounting bracket |
| Junction box | The camera comes with a junction box for storing cable |
| Interface | |
| Network interface | 1 × 10M/100M RJ45 |
| Serial port | 1 × RS485 |
| Boolean output | 1 relay output, withstand voltage: AC 125V/0.3A, DC 30V/1A |
| Boolean input | 2 inputs, supports level / Boolean, with max level up to DC 5V |
| Audio interface | 1 × audio input, 1 × audio output |
| Storage interface | 1 × Micro SD card slot |
| General | |
| Power supply | DC12V 25% - 10% Max. power consumption: 20W Supports PoE (802.3at, class 4) |
| Dimensions (L × W × H) | 386 x 126 x 130mm (15.2 x 5 x 5.1”) |
| Weight | 2kg (4.4lbs) |
| Operating environment | -40°C ~ 60°C , (-40°F ~ 140°); ?90% Relative Humidity |
| Ingress protection | IP67, IK10 |
